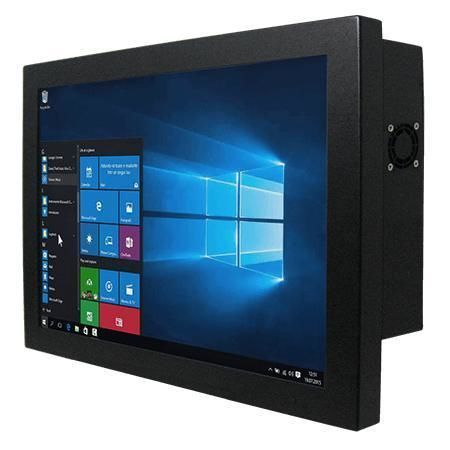

Resistive touch screen panel PC W15IP7T-CHA2

15.6"Intel® Pentium® N42001366 x 768

Overview
The Winmate W15IP7T-CHA2 is a 15.6-inch chassis panel PC powered by an Intel® Pentium® N4200 (Apollo Lake). It is engineered for machine control, factory automation and operator HMI applications that require low power consumption, flexible storage and multiple I/O options.

Key Features

• Intel® Pentium® N4200 (1.10 GHz, burst up to 2.5 GHz)
• Flexible storage: 2.5" HDD/SSD bay and M.2 SSD options
• Multiple I/O: 4 x USB 3.0, serial ports, 2 x Gigabit LAN
• 12 V DC input (Din4 pin) and fanless metal housing
• DisplayPort support up to 4096 x 2160 @ 60 Hz; HDMI support up to 3840 x 2160 @ 30 Hz (configuration dependent)

Display

• Size: 15.6 inches
• Touch / Glass: Resistive touch (optional) or protection glass without touch (optional)
• Resolution: 1366 x 768
• Brightness: 400 nits
• Contrast ratio: 500:1
• Viewing angles: 85/85/80/80

System specification

• Processor: Intel® Pentium® N4200 (1.1 GHz, up to 2.5 GHz)
• Memory: Dual-channel SO-DIMM (non-ECC), up to 16 GB
• Storage: 128 GB SSD default; options up to 1 TB; 2 x SATA III for 2.5" drives (optional, RAID support)
• Ethernet: 2 x Intel® Gigabit LAN (I210 series)
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu options
• WLAN/Bluetooth: optional via M.2 module

Mechanical & cooling

• Dimensions: 398 x 254 x 70 mm
• Weight: 4.3 kg
• Mounting: rear mount and VESA options
• Enclosure: metal housing
• Cooling: fanless design for reliable long-term operation

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C

I/O ports & expansion

• USB: 4 x USB 3.2 Gen1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; variants optional
• LAN: 2 x Gigabit LAN (RJ45)
• Video: 1 x DP1.2 (default); 1 x HDMI 1.4 (optional); 1 x VGA (optional)
• Audio: Mic in, Line out, 2 x speakers
• Expansion: M.2 2242 B-key (SATA SSD), M.2 2230 E-key (Wi‑Fi), PCIe 2.0 x1

Power & accessories

• Power input: 1 x 12V DC (Din4 pin connector)
• Adapter: 12V 84W (accessory depending on configuration)
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws, driver CD & manual (depending on delivery)

Certifications

• CE, FCC

Recommended applications

• Machine control, factory automation, operator HMI, OEM integration and embedded industrial environments requiring long-term reliable operation

Technical specifications

• Model: W15IP7T-CHA2
• Brand: Winmate
• Display size: 15.6"
• Resolution: 1366 x 768
• Processor: Intel® Pentium® N4200
• Memory: Up to 16 GB (2 x SO-DIMM)
• Storage: M.2 2242 SSD (default 128 GB), optional 256/512 GB/1 TB; 2 x SATA III for 2.5" drives
• LAN: 2 x Gigabit
• USB: 4 x USB 3.2 Gen1
• Serial: RS232/422/485 configurable
• Video outputs: DP1.2, optional HDMI 1.4, optional VGA
• Audio: Mic in, Line out, 2 speakers
• Expansion: M.2 B-key 2242, M.2 E-key 2230, PCIe 2.0 x1
• Security: TPM 2.0
• Power: 12V DC, Din4; adapter 12V 84W
• Dimensions: 398 x 254 x 70 mm
• Weight: 4.3 kg
• Mounting: VESA / rear mount
• Enclosure: Metal, fanless
• Operating temp: 0°C to 50°C
• Storage temp: -10°C to 60°C
• Operating humidity: 10%–90% RH (non-condensing)
• Certifications: CE, FCC
