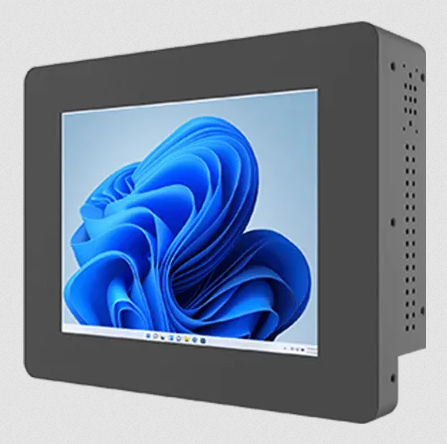

TFT LCD panel PC R08IAN3S-CHT1WT

8.4"Intel® Processor N150SVGA

Overview
Winmate R08IAN3S-CHT1WT is an 8.4" wide-temperature chassis Panel PC designed for machine control, factory automation and operator HMI. It integrates an Intel® Twin Lake N150 processor, SVGA display and versatile I/O to support embedded and industrial monitoring applications where stable operation across extended temperature ranges is required.

Key features

• 8.4" SVGA TFT LCD
• Intel® Twin Lake N150 processor
• 1 x SO-DIMM DDR5-4800, up to 16 GB
• 2 x 2.5 Gbps Ethernet (RJ45)
• Video & USB: 1 x HDMI 2.0b (optional); 1 x USB 3.2 Gen2 Type-C (DP Alt mode); 2 x USB 3.2 Gen1 Type-A; additional USB 2.0 ports as referenced
• Serial interfaces: configurable RS232/422/485 and additional RS232 ports (see variant details)
• Metal chassis, fanless design, VESA-mountable
• Wide operating temperature: -20°C to 60°C

Certifications

• CE
• FCC

Applications

• Machine control
• Factory automation
• Operator HMI
• Industrial embedded systems and OEM integration

Technical specifications

• Model: R08IAN3S-CHT1WT
• Display: 8.4" SVGA TFT LCD
• Processor: Intel® Twin Lake N150
• Memory: 1 x SO-DIMM DDR5-4800, max. 16 GB
• Ethernet: 2 x 2.5 Giga LAN (RJ45)
• USB: 2 x USB 3.2 Gen1 Type-A; 1 x USB 3.2 Gen2 Type-C (DP Alt. mode); additional USB 2.0 ports as referenced
• Video: 1 x HDMI 2.0b (optional)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; page may list up to 4 COM ports depending on variant
• Audio: 2 x speaker
• Expansion: 1 x M.2 2230 E-Key (for Wi‑Fi module)
• Indicators: 1 x LED for power; 1 x LED for storage
• Brightness control: 1 x brightness adjustment knob
• Power input: 1 x 12V DC, 2.5φ DC jack; adapter 12V 50W included
• Mechanical dimensions: 236 x 190 x 60 mm
• Weight: 2.2 kg
• Mounting: VESA mount
• Enclosure: metal housing
• Cooling: fanless design
• Operating temperature: -20°C to 60°C
• Storage temperature: -25°C to 65°C
• Operating humidity: 30% to 90% RH, non-condensing
• Buttons / controls: power button, reset button
• Accessories included: 100~240V AC to DC adapter, power cord, VESA screws
