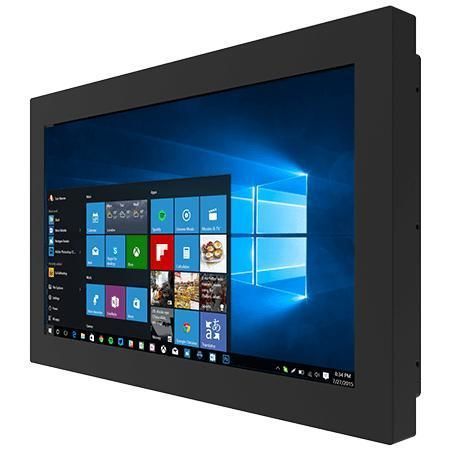

Resistive touch screen panel PC W15IT3S-CHA2

TFT LCD15.6"Intel® Core™ i5-1135G7

Overview
Winmate W15IT3S-CHA2 is a 15.6" chassis panel PC powered by an Intel® Core™ i5-1135G7 processor, designed for machine control, factory automation and operator HMI. It targets industrial buyers, OEMs and system integrators who require a fanless, VESA-mountable, long-life platform with flexible I/O and storage options.

Key features

• 15.6" TFT XGA display (1366 x 768), 400 nits
• Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz)
• Fanless thermal design and ultra-low power operation
• 1 x SO-DIMM DDR4 3200 MHz (up to 32 GB)
• Integrated dual Intel® Ethernet controllers (2 x 2.5 Giga LAN RJ45)
• M.2 storage: M.2 Key M 2242 SATA III (default) and optional M.2 2280 NVMe
• TPM 2.0 security support and optional Wi‑Fi / BT

Product details

• Touch / Protective glass options: Resistive touch screen (optional) or protection glass without touch (optional) to suit different industrial interfaces.
• Mounting: Rear and VESA mounting options for panel or cabinet integration.
• Mechanical & cooling: Metal enclosure with anti-corrosion finish and fanless cooling for continuous operation.

Technical specifications

• Model: W15IT3S-CHA2
• Display: 15.6 inches, 1366 x 768 (XGA), 400 nits, 500:1 contrast, viewing angles 85/85/80/80, active area 344.232 x 195.536 mm
• Touch / Glass: Resistive touch (optional); Protection glass (optional)
• Processor: Intel® Core™ i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 4 GB default; options 8/16/32 GB; SO-DIMM DDR4 3200 MHz (max 32 GB)
• Storage: 128 GB SSD default; optional 256/512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2242 Key M (SATA III), 1 x M.2 2230 E-Key (Wi‑Fi)
• LAN: 2 x 2.5 Giga LAN RJ45 (Intel® Ethernet Controller)
• IO: 2 x USB 3.2 Gen2 Type-A; Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; Video: 1 x HDMI 2.0 (optional); Audio: 2 x speaker
• Indicators & controls: Power LED, Storage LED, Brightness adjustment knob, Power and Reset buttons
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (no Wake on Touch)
• Power: 1 x 12V DC (2.5φ jack); adapter 12V 120W included
• Dimensions: 398.3 x 254 x 69 mm; Weight: 4.3 kg
• Operating: 0°C to 50°C; Storage: -10°C to 60°C; Humidity: 10% to 90% RH non-condensing
• Certifications: CE, FCC
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws
