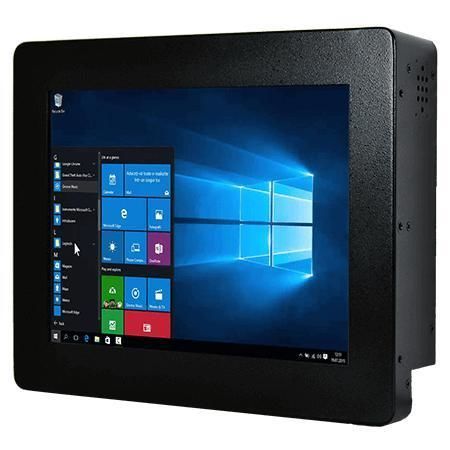

Resistive touch screen panel PC R12IE3S-CHM2WT

TFT LCD12.1"Intel® Celeron® N6211

Overview
Winmate R12IE3S-CHM2WT is a 12.1-inch Intel® Celeron® N6211 chassis wide-temperature panel PC for machine control, factory automation and operator HMI. It is engineered for stable field operation, long lifecycle availability and flexible hardware integration for industrial, OEM and system integrator projects.

Key Features

• 12.1 inches TFT LCD, 1024 x 768, 500 nits
• Intel® Celeron® Elkhart Lake N6211 processor (up to 3.0 GHz)
• 1 x SO-DIMM, up to 16 GB DDR4
• 2 x Intel® Ethernet controllers (2 x 2.5 Giga LAN RJ45)
• Support for 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen2x1, 4 x USB 2.0
• Front IP65 protection, metal housing, fanless design
• Wide operating temperature: -20°C to 60°C

Operator interface and mounting

• Resistive touch option or protective cover glass when touch is not required
• Rear and VESA mounting options to fit varied installations
• Brightness adjustment knob and compact 303 x 217 x 60 mm footprint

Certifications

• CE
• FCC

Technical specifications

• Model: R12IE3S-CHM2WT
• Display: Size: 12.1 inches; Touch / Glass: Resistive Touch Screen (Optional) / Protection Glass Without Touch Function (Optional); Resolution: 1024 x 768; Brightness: 500 nits; Contrast Ratio: 1000:1; View Angles: 89,89,89,89; Active Area: 245.76 x 184.32 mm
• System Specification: Processor: Intel® Celeron® N6211 (up to 3.0 GHz); Memory: 4 GB (Default), options: 8 GB, 16 GB; Storage: 128 GB SSD (Default), optional 256 GB/512 GB/1 TB/2 TB; 1 x SATA III for 2.5" SSD/HDD (Optional); Ethernet: 2 x Intel® Ethernet Controller; Security: TPM 2.0; OS: Optional Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Windows 10 IoT Enterprise (64-bit), Linux Ubuntu 22.04; WLAN/BT: optional via M.2 2230 E-Key
• Mechanical: Dimension: 303 x 217 x 60 mm; Weight: 3.5 kg; Mounting: VESA mount; Enclosure: Metal Housing; Cooling: Fanless Design
• Environment: Operating Humidity: 30% to 90% RH, non-condensing; Operating Temperature: -20°C to 60°C; Storage Temperature: -25°C to 65°C
• IO Ports: USB: 2 x USB 3.2 Gen2x1 (Type-A) + additional USB 2.0 ports; Serial: 1 x RS232/422/485 (Default RS232) + 1 x RS232; LAN: 2 x 2.5 Giga LAN RJ45; Video: 1 x HDMI 2.0 (Optional); Audio: 2 x Speaker; Expansion: 1 x M.2 2242 B-Key (for SATA III SSD), 1 x M.2 2230 E-Key (for Wi‑Fi module); Indicators: power and storage LEDs; Brightness Knob: present; Power Input: 1 x 12V DC, 2.5φ DC jack
• Control: Buttons: 1 x Power Button, 1 x Reset Button
• Accessory: 100~240V AC to DC Adapter, Power Cord, VESA screws
• Power: Power Rating: 12V DC; Adapter: 12V 50W
