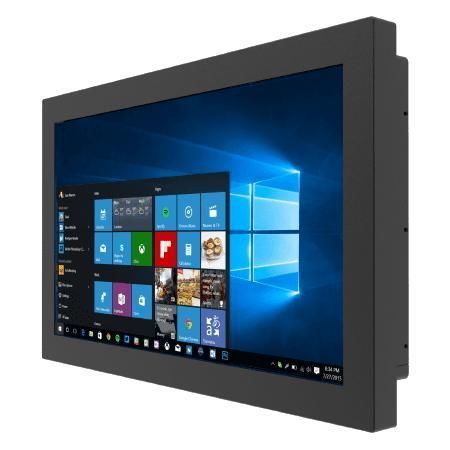

Resistive touch screen panel PC W18IT7T-CHA2

LCD18.5"Intel® Core™ i5-1135G7

Overview
Winmate W18IT7T-CHA2 is an 18.5-inch chassis panel PC powered by Intel® Core™ i5 (Tiger Lake) designed for machine control, factory automation and operator HMI. It targets industrial buyers, OEMs and system integrators requiring reliable hardware integration, stable field operation and long lifecycle availability.

Key Features

• Intel® Core™ Tiger Lake UP3 i5-1135G7 (Without vPro) or i5-1145G7E (With vPro)
• 1366 x 768 resolution
• Multi-display support: DP / HDMI / LVDS / eDP panel interface
• Multiple I/Os: serial ports, USB 3.2 Gen.1 ports
• 12V single voltage power input

Overview — Operator Options
Resistive touch and optional protective glass: flexible surface options include a resistive touch screen or protection glass without touch, to meet different operator/environmental requirements.

Overview — Design & Thermal
Low power consumption design with effective heat dissipation for durable long-term operation in production environments. Fanless design contributes to reliability.

Display

• Size: 18.5 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protective Glass without touch (Optional)
• Resolution: 1366 x 768
• Panel Brightness: 450 nits
• Contrast Ratio: 1000:1
• View Angles: 85 / 85 / 80 / 80
• Active Area: 409.8 x 230.4 mm

System Specification

• Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
• Memory: 2 x non-ECC SO-DIMM, up to 64GB (32GB per DIMM)
• Storage: 128GB SSD (default); optional 256GB / 512GB / 1TB / 2TB / 4TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet controller: 2 x Intel® Ethernet controllers
• Security: TPM 2.0
• Operating system (optional): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro 64-bit, Linux Ubuntu 22.04 (note: Linux option does not support Wake on Touch)
• WLAN/BT: supported as optional modules

Mechanical

• Dimension: 470 x 293 x 70 mm
• Weight: 6.6 kg
• Mounting: VESA mount and rear mounting options
• Enclosure: Metal housing
• Cooling system: Fanless design

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C

Certification

• CE
• FCC

IO Ports

• USB: 4 x USB 3.2 Gen 2x1 (Type-A)
• Serial ports: 1 x RS232/422/485 (default RS232), 1 x RS232
• LAN: 1 x Gigabit RJ45, 1 x 2.5 Gigabit RJ45
• Video: 1 x DP 1.4 (default), 1 x HDMI 2.0 (optional)
• Audio: Mic in, Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD), 1 x M.2 2230 E-Key (Wi-Fi module), 1 x PCIe 4.0 (x16) slot (x4 signal)
• Indicators: LED for power and LED for storage
• Brightness control: 1 x brightness adjustment knob
• Power input: 1 x 12V DC, Din4 pin connector

Control

• Buttons: 1 x Power button, 1 x Reset button

Accessory

• 100~240V AC to DC adapter
• Power cord
• VESA screws

Power

• Power rating: 12V DC
• Adapter: 12V 120W

Caractéristiques / Spécifications techniques

• Model: W18IT7T-CHA2
• Form factor: 18.5" chassis panel PC for industrial HMI and machine control
• CPU options: Intel® Core™ Tiger Lake UP3 i5-1135G7 / i5-1145G7E
• Memory up to 64GB (2 x SO-DIMM)
• Storage: onboard NVMe + optional 2.5" SATA
• Multiple I/Os including 4 x USB3, serial, dual Intel LAN (1 x 1Gb + 1 x 2.5Gb)
• Video outputs: DP1.4 (default), HDMI 2.0 (optional)
• Mounting: Rear and VESA
• Enclosure: Metal, fanless design
• Operating temperature/humidity: 0°C to 50°C; 10%–90% RH non-condensing
• Certifications: CE, FCC
