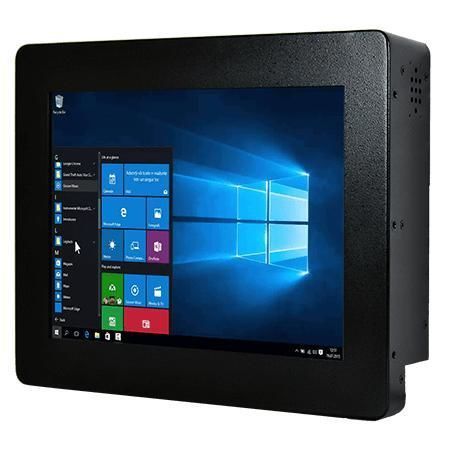

Resistive touch screen panel PC R10IE3S-CHT2

TFT LCD10.4"Intel® Celeron® N6211

Overview
Winmate R10IE3S-CHT2 is a 10.4-inch chassis Panel PC powered by Intel® Celeron® N6211, engineered for machine control, factory automation and operator HMI. It targets industrial buyers, OEMs and system integrators requiring a compact, configurable and mountable industrial panel solution.

Key Features

• 10.4-inch TFT XGA (1024 x 768) display, 500 nits, contrast 1000:1
• Intel® Celeron® Elkhart Lake N6211 (up to 3.0 GHz)
• 1 x SO-DIMM, up to 16 GB DDR4 (default 4 GB; optional 8 GB / 16 GB)
• 2 x Intel® Ethernet controllers (2 x 2.5 Giga LAN RJ45)
• Storage: 128 GB SSD default; optional 256/512 GB / 1 TB / 2 TB; supports 1 x SATA III for 2.5-inch SSD/HDD
• Front panel protection IP65
• Multiple I/O: 2 x USB 3.2 Gen2x1 (Type-A), 4 x USB 2.0, 4 x COM (RS232/422/485)

Operator & Mechanical Highlights

• Resistive touch option or protection glass without touch to suit different operator environments
• Fanless, low-power design for continuous industrial operation
• Rear and VESA mounting options for flexible installation

Certifications

• CE
• FCC

Available Options & Notable Additions

• Memory: 4 GB (default), 8 GB, 16 GB
• Storage: 128 GB SSD (default); optional 256/512 GB/1 TB/2 TB; M.2 2242 B-Key for SATA SSD
• M.2 2230 E-Key for Wi‑Fi module; optional WLAN/Bluetooth
• Operating systems: Windows 11 IoT Enterprise, Windows 11 Pro, Windows 10 IoT Enterprise, Linux Ubuntu 22.04 (optional)
• Security: TPM 2.0 available

Multimedia & Indicators

• Optional HDMI 2.0 output
• 2 x speakers
• LED indicators for power and storage; 1 x brightness adjustment knob
• 1 x Power Button; 1 x Reset Button

Power & Accessories

• Power input: 1 x 12V DC, 2.5φ DC jack
• Power adapter: 12V 50W (adapter and power cord included as standard or accessory)
• Included accessories: 100~240V AC to DC adapter, power cord, VESA screws

Environmental & Mechanical

• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non-condensing
• Dimensions: 270 x 225 x 60 mm; Weight: 2.6 kg
• Enclosure: metal housing; cooling: fanless design

IO & Connectivity

• USB: 2 x USB 3.2 Gen2x1 (Type-A) and 4 x USB 2.0
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45
• Expansion: 1 x M.2 2242 B-Key (SATA III SSD), 1 x M.2 2230 E-Key (Wi‑Fi)
• Brightness control: 1 x brightness adjustment knob

Product Summary Notes

• Front panel protection rated IP65; display active area 210.4 x 157.8 mm; viewing angles 88/88/88/88
• Default configuration: 4 GB memory, 128 GB SSD; both are configurable for OEM deployments
• Designed for machine control, factory automation and operator HMI where long lifecycle and reliable integration are required

Technical Specifications

• Model: R10IE3S-CHT2
• Brand: Winmate
• Display size/resolution: 10.4-inch, 1024 x 768 (XGA)
• Brightness/contrast: 500 nits / 1000:1
• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB default; up to 16 GB DDR4 (1 x SO-DIMM)
• Storage: 128 GB SSD default; up to 2 TB optional; 1 x SATA III for 2.5-inch drives
• Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45)
• Serial ports: up to 4 x COM (RS232/422/485)
• USB: 2 x USB 3.2 Gen2x1 (Type-A); 4 x USB 2.0
• Video: 1 x HDMI 2.0 (optional)
• Expansion: M.2 2242 B-Key, M.2 2230 E-Key
• Power input: 12V DC, adapter 12V 50W
• Dimensions/weight: 270 x 225 x 60 mm / 2.6 kg
• Mounting: rear mount / VESA mount
• Enclosure: metal housing; cooling: fanless
• Certifications: CE, FCC
