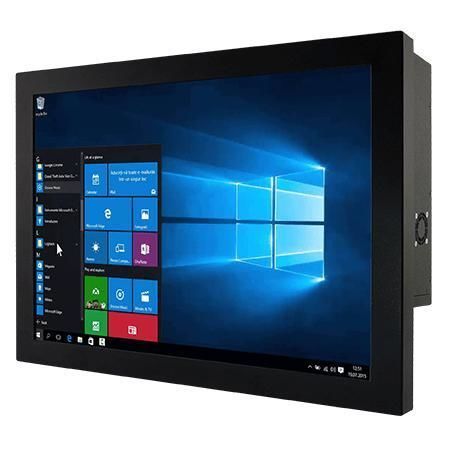

Resistive touch screen panel PC W22IF7T-CHA3

LCDLED backlight21.5"

Overview
Winmate W22IF7T-CHA3 is a 21.5-inch chassis Panel PC powered by Intel® Core™ i3/i5/i7 (9th Gen, Coffee Lake Refresh) processors, designed for machine control, factory automation and operator HMI. It is aimed at industrial OEMs and system integrators needing long lifecycle availability and flexible integration options.

Key features

• 21.5" 1920 x 1080 display; optional resistive touch or protection glass
• Intel® Core™ i7/i5/i3 family (i7-9700TE default)
• Flexible storage: 2.5" HDD bay, M.2 2280 (NVMe/SATA), M.2 2242 B-key; 2 x SATA III; RAID 0/1 optional
• Multiple I/O: 2 serial ports (configurable RS232/422/485), 4 x USB 3.2 Gen1 Type-A, 2 x Intel® Gigabit LAN
• 12 V DC lockable Din4 power input; optional 12 V 120 W adapter
• Expansion: M.2 2230 E-Key for WLAN/Bluetooth, optional PCIe 3.0 x16

Display

• 21.5 inches; 1920 x 1080; 250 nits brightness; 3000:1 contrast; view angles 89/89/89/89; active area 476.64 x 268.11 mm
• Resistive touch option or protection glass (non-touch) option

Certifications

• CE
• FCC

Product presentation / Design
Metal chassis with fan-cooled thermal design, multiple mounting options including rear and VESA mounting, and a low-power design for reliable continuous operation in production environments.

Optional / Expandability

• Support for WLAN/Bluetooth modules (M.2 2230), TPM 2.0 security, configurable memory and storage, optional Windows 10 IoT Enterprise or Linux
• M.2 and PCIe expansion slots for NVMe SSDs and add-on cards

Technical specifications

• Model: W22IF7T-CHA3
• Processor: Intel® Core™ i7-9700TE (default); optional i5-9500TE, i3-9100TE
• Chipset: Intel® Q370
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD default; optional 256/512 GB / 1 TB / 2 TB; 2 x SATA III for 2.5" SSD/HDD; 1 x M.2 2280 M-Key (NVMe/SATA); 1 x M.2 2242 B-Key
• Ethernet: 2 x Intel® Gigabit Ethernet (RJ45)
• Video: 1 x DisplayPort 1.2 (default); 1 x HDMI 1.4 (optional)
• USB: 4 x USB 3.2 Gen1 Type-A
• Serial: 1 x RS232/422/485 (configurable, default RS232); 1 x RS232
• Audio: Mic in, Line out, 2 x speakers
• Indicators & controls: Power LED, Storage LED, Brightness adjustment knob, Power and Reset buttons
• Power: 12 V DC Din4 lockable connector; adapter 12 V 120 W (accessory)
• Mechanical: 507 x 303 x 76 mm; Weight approx. 7.2 kg; Metal housing; fan cooling
• Environment: Operating 0°C to 50°C; Storage -10°C to 60°C; Humidity 10%–90% RH non-condensing
• Certification: CE, FCC
