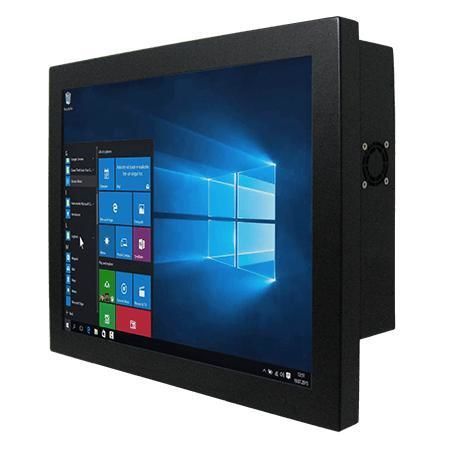

Resistive touch screen panel PC R19IAD7T-CHA1

19"Intel® Core™ i9-12900TEIntel® Core™ i7-12700TE

Overview
Winmate R19IAD7T-CHA1 is a 19-inch chassis panel PC for machine control, factory automation and operator HMI. It supports 12th/14th Gen Intel® Core™ processors, offers multiple I/O and expansion slots, dual 2.5Gb Ethernet and flexible mounting options for industrial installations.

Key Features

• 19-inch display, 1280 x 1024 resolution
• Intel® Core™ processors (i3 / i5 / i7 / i9) — Alder Lake S and selected T-series options
• 2 x SO-DIMM DDR5 4800MHz, up to 64GB (32GB per slot)
• Integrated dual 2.5 Gigabit Ethernet
• Multi-display: DP 1.4a (default), HDMI 2.0b (optional)
• Multiple I/O: 4 x USB 3.2 Gen2x1, serial ports, audio
• 12 V DC power input; fan-cooled thermal design

Product Highlights

• Configurable performance range from Core i3 to i9 for diverse industrial workloads
• Touch options: resistive touch or protection glass (non-touch)
• Low power modes and efficient heat dissipation for continuous operation
• Mounting: rear mount and VESA mount options for control panels and cabinets
• Security: TPM 2.0 support

Additional Product Information

• Default storage: 128GB SSD; optional SSDs up to 4TB; optional 2 x SATA III for 2.5" drives (RAID support)
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)
• OS support: Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 22.04 (Wake on Touch not supported on Linux)

Specifications

• Display: 19.0 inches, 1280 x 1024, brightness 400 nits, contrast 1000:1, active area 376.32 x 301.06 mm
• Processor: Intel® Core™ i3-12100TE (default); optional i5-12500TE, i7-12700TE, i9-12900TE; T-series variants optional
• Chipset: Intel® R680E
• Memory: 2 x non-ECC SO-DIMM DDR5 4800MHz, up to 64GB
• Storage: 128GB SSD default; 256/512GB/1TB/2TB/4TB optional; 2 x SATA III optional
• Ethernet: 2 x Intel® 2.5GbE
• I/O: 4 x USB 3.2 Gen2 Type-A, 1 x RS232/422/485 + 1 x RS232, Mic in, Line out
• Video: 1 x DP1.4a (DP++), 1 x HDMI 2.0b (optional), up to 4096 x 2160@60Hz
• Mechanical: 432 x 363 x 79 mm, weight 7.0 kg, metal enclosure
• Mounting: VESA and rear mount options
• Power: 1 x 12V DC (Din4 connector); adapter 12V 220W
• Environment: Operating 0°C to 50°C, humidity 10%–90% RH non-condensing
• Certifications: CE, FCC
