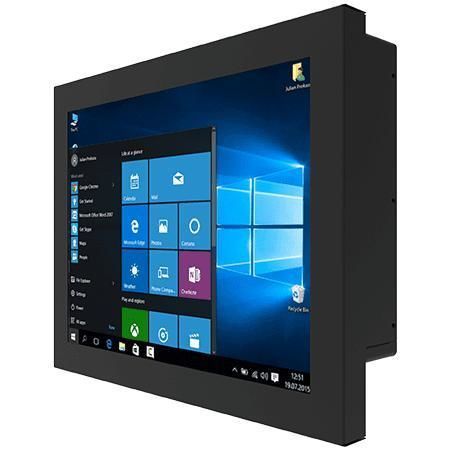

Resistive touch screen panel PC R15IT3S-CHC3

15"Intel® Core™ i5-1135G71024 x 768

Overview
Winmate R15IT3S-CHC3 is a 15-inch chassis panel PC powered by Intel® Core™ i5-1135G7, engineered for machine control, factory automation and operator HMI. Its fanless design, metal housing and compact chassis enable stable OEM and system integrator installations in space-constrained industrial environments.

Key Features

• 15" TFT XGA display (1024 x 768), 300 nits, 2000:1 contrast
• Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz)
• Fanless cooling and low-power design
• 1 x SO-DIMM DDR4 3200 MHz (max 32GB)
• Dual Intel® 2.5 Giga Ethernet ports
• M.2 storage: Key M slot for 2242 SATA III; optional 2280 NVMe

Product Details

• Touch / Glass options: Resistive touch screen (optional) or protection glass without touch (optional) to suit different operator requirements.
• Storage & memory: Default 4GB RAM and 128GB SSD; multiple upgrade options (up to 32GB RAM, various SSD capacities). 1 x SATA III for optional 2.5" drive.
• Mounting and enclosure: Rear and VESA mounting supported; metal housing for industrial durability.
• I/O and expansion: 2 x USB3.2 Gen2, serial ports (RS232/422/485 configurable), HDMI 2.0 (optional), M.2 2230 E-Key for Wi‑Fi, TPM 2.0.

Certifications / Compliance
CE, FCC

Technical Specifications

• Model: R15IT3S-CHC3
• Display: 15.0 inches, 1024 x 768 (XGA), 300 nits, 2000:1, active area 304.1 x 228.1 mm
• Processor: Intel® Core™ i5-1135G7 (2.4 GHz up to 4.2 GHz)
• Memory: 4GB default; optional 8/16/32GB (1 x SO-DIMM DDR4-3200, max 32GB)
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; 1 x M.2 Key M, 1 x SATA III for 2.5" drive (optional)
• Ethernet: 2 x Intel® 2.5 G LAN RJ45
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Ubuntu 22.04 (Linux does not support Wake on Touch)
• WLAN / BT: Optional via M.2 2230 E-Key
• USB: 2 x USB3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x speaker
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators & controls: Power LED, storage LED, brightness adjustment knob, power and reset buttons
• Power: 12V DC input (2.5φ); adapter 12V 120W
• Mechanical: 360 x 290 x 69 mm; weight 4.2 kg; VESA mount
• Operating: 0°C to 50°C; storage -10°C to 60°C; 10%–90% RH non-condensing
• Included accessories: 100~240V AC to DC adapter, power cord, VESA screws
