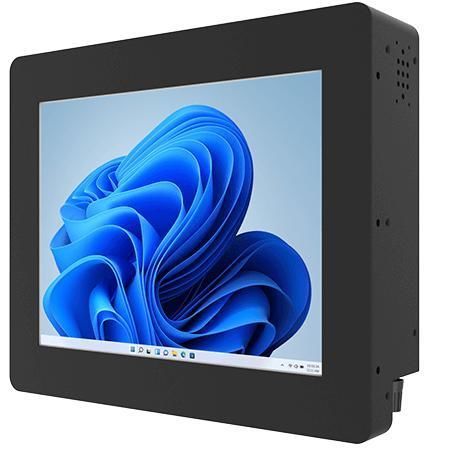

Resistive touch screen panel PC R10IAN3S-CHT2

TFT LCD10.4"Intel® Processor N100

Overview
The Winmate R10IAN3S-CHT2 is a 10.4" chassis panel PC designed for machine control, factory automation and operator HMI. Based on the Intel® Twin Lake N150 (N100 family), it offers integrated UHD graphics, flexible I/O and long lifecycle availability for industrial integrators, OEMs and system builders.

Key Features

• 10.4" XGA TFT LCD, 500 nits
• Intel® Twin Lake N150 processor (specification references N100 family)
• 1 x SO-DIMM DDR5-4800 (8GB default, up to 16GB)
• Dual Intel® 2.5 Gigabit Ethernet
• HDMI (optional), USB-C (DP-Alt), multiple USB and COM ports
• Fanless metal chassis, VESA mount

Display
Size: 10.4"
Resolution: 1024 x 768 (XGA)
Brightness: 500 nits
Contrast: 1000:1
Touch/Glass: Resistive touch optional or protection glass optional

System Specification
CPU: Intel® Processor N100 (Twin Lake N150 in product name), up to 3.40 GHz
Memory: 1 x SO-DIMM DDR5-4800, 8GB default, optional 16GB
Storage: M.2 2280 NVMe 128GB default; optional 256/512GB/1TB/2TB/4TB; optional SATA III for 2.5" up to 2TB (when NVMe absent)
Security: TPM 2.0
OS (optional): Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 24.04 (no Wake on Touch on Ubuntu)

Mechanical
Dimensions: 270 x 225 x 60 mm
Weight: 2.6 kg
Enclosure: Metal housing
Cooling: Fanless design
Mounting: VESA mount

Environment
Operating humidity: 10%–90% RH non-condensing
Operating temperature: 0°C to 50°C
Storage temperature: -10°C to 60°C

Certification
CE, FCC

IO Ports

• LAN: 2 x 2.5 Giga LAN (RJ45)
• USB: 1 x USB 3.2 Gen2 Type-C (DP Alt Mode), 2 x USB 3.x Type-A, up to 4 x USB 2.0 (page variants)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video: 1 x HDMI 2.0b (optional)
• Audio: 2 x speaker
• Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi)

Control, Accessories & Power
Buttons: Power and Reset
Accessories: 100~240V AC to DC adapter, power cord, VESA screws
Power input: 12V DC (adapter 12V 50W)

Product positioning
Designed for industrial automation and operator HMI tasks, providing stable integration, real-time data processing and smooth graphics rendering in a compact chassis panel form.

Technical specifications

• Model: R10IAN3S-CHT2
• Display: 10.4" XGA (1024x768), 500 nits, 1000:1
• CPU: Intel® Twin Lake N150 (N100 family), up to 3.40 GHz
• Memory: 1 x SO-DIMM DDR5-4800 (8GB default, up to 16GB)
• Storage: M.2 2280 NVMe 128GB default; optional up to 4TB; optional SATA III for 2.5" drive
• LAN: Dual Intel® 2.5 Gigabit Ethernet
• USB: USB-C (DP-Alt) + USB 3.x Type-A + USB 2.0 ports
• Serial: RS232/422/485 support
• Security: TPM 2.0
• Mounting: VESA
• Dimensions / Weight: 270 x 225 x 60 mm / 2.6 kg
• Enclosure: Metal, fanless
• Operating Temp / Humidity: 0°C to 50°C; 10%–90% RH non‑condensing
• Certifications: CE, FCC
• Power Input: 12V DC (adapter 12V 50W)
