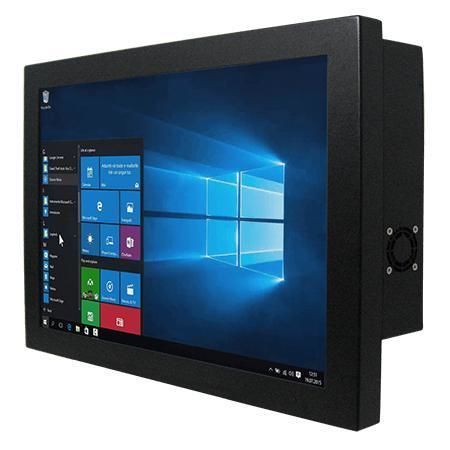

Resistive touch screen panel PC R15IT7T-CHC3

15"Intel® Core™ i5-1135G7Intel® Tiger Lake-U

Overview
Winmate R15IT7T-CHC3 is a 15.0" chassis panel PC powered by Intel® Core™ i5 (Tiger Lake). It is engineered for machine control, factory automation and operator HMI applications where long lifecycle availability, multiple I/O and flexible mounting are required.

Key Features

• Intel® Core™ Tiger Lake UP3: i5-1135G7 (without vPro) or i5-1145G7E (with vPro)
• 15.0" display, 1024 x 768 resolution, 300 nits
• Multi-display support: DP / HDMI (optional) / LVDS / eDP
• Multiple I/O: 2 x serial (configurable RS232/422/485), 4 x USB 3.2 Type-A, Gigabit + 2.5GbE LAN
• 12V DC input, fanless design, metal enclosure

Product highlights & operator convenience

• Optional resistive touch screen or protective glass (no touch) to match the application
• Low power design and effective heat dissipation for continuous operation
• Multiple mounting options including rear and VESA mount for panel integration
• Expansion: M.2 NVMe and M.2 Wi‑Fi slots; PCIe 4.0 x16 (x4 signal)

Certifications

• CE
• FCC

Technical specifications

• Model: R15IT7T-CHC3
• Display: 15.0", 1024 x 768, 300 nits, 2000:1 contrast, active area 304.1 x 228.1 mm, viewing angles 88/88/88/88
• Touch / Glass: Resistive touch (optional); protection glass (optional)
• CPU: Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz); option i5-1145G7E (vPro)
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD default; optional 256/512 GB/1/2/4 TB; 1 x SATA III for 2.5" SSD/HDD (optional); 1 x M.2 2280 M-Key (NVMe)
• LAN: 1 x Gigabit RJ45 + 1 x 2.5 Gigabit RJ45; Ethernet controllers: Intel®
• Security: TPM 2.0
• OS: Optional Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 22.04 (no Wake on Touch)
• Wireless: M.2 2230 E-Key for Wi‑Fi (optional); Bluetooth optional
• Video: 1 x DP1.4 (default); 1 x HDMI 2.0 (optional)
• Audio: Mic in; Line out
• USB: 4 x USB 3.2 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Expansion: 1 x PCIe 4.0 (x16) slot (x4 signal)
• Indicators & controls: Power LED, Storage LED, Brightness adjustment knob, Power and Reset buttons
• Dimensions / Weight: 360 x 290 x 70 mm; 4.2 kg
• Power input / adapter: 12V DC (Din4), adapter 12V 120W (example); accessories: 100~240V AC to DC adapter, power cord, VESA screws
• Operating humidity: 10%–90% RH non-condensing; Operating temperature: 0°C–50°C; Storage temperature: -10°C–60°C
