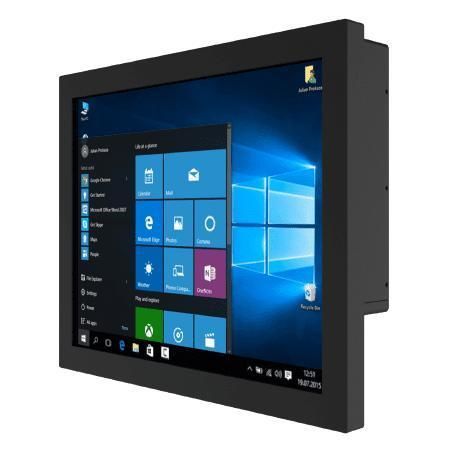

Resistive touch screen panel PC R19IT7T-CHA1

LCD19"Intel® Core™ i5-1135G7

AI Summary
Winmate R19IT7T-CHA1 is a 19.0 inches chassis Panel PC based on Intel® Core™ Tiger Lake i5 processors, engineered for machine control, factory automation and operator HMI. It targets industrial buyers, OEMs and system integrators needing a compact, fanless compute platform with flexible I/O, multi-display options and long-term availability.

Key Features

• Intel® Core™ Tiger Lake UP3: i5-1135G7 (without vPro) / i5-1145G7E (with vPro)
• 1280 x 1024 resolution; 400 nits brightness
• Multi-display support: DP / HDMI / LVDS / eDP
• Multiple I/Os: serial ports, 4 x USB 3.2 Type-A
• 12V DC single-voltage input, Din4 connector

Overview

• Touch / Protective Glass: Optional resistive touch or protection glass without touch to match installation needs.
• Low Power & Fanless: Fanless thermal design and low power consumption for continuous operation in industrial environments.
• Mounting: Rear and VESA mounting options for panel or enclosure integration.

Certifications

• CE
• FCC

Product Details
Display

• Size: 19.0 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass Without Touch Function (Optional)
• Resolution: 1280 x 1024
• Panel Brightness: 400.0 nits
• Contrast Ratio: 1000:1
• View Angles: 85, 85, 80, 80
• Active Area: 376.32 x 301.06 mm

System Specification

• Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz); option i5-1145G7E (with vPro)
• Memory: 2 x non-ECC SO-DIMM, up to 64GB (32GB per DIMM)
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; 1 x SATA III for 2.5" HDD/SSD (optional)
• Ethernet: Dual Intel controllers (1 x Gigabit, 1 x 2.5 Gigabit)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Linux Ubuntu 22.04 (does not support Wake on Touch)
• WLAN / Bluetooth: optional via M.2 2230 E-Key

Mechanical

• Dimensions: 432 x 363 x 70 mm
• Weight: 7.0 kg
• Mounting: VESA mount
• Enclosure: Metal housing
• Cooling: Fanless design

Environment

• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C

IO Ports

• USB: 4 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 1 x Gigabit RJ45; 1 x 2.5 Gigabit RJ45
• Video: 1 x DP1.4 (default); 1 x HDMI 2.0 (optional)
• Audio: Mic in; Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD); 1 x M.2 2230 E-Key (Wi‑Fi); 1 x PCIe 4.0 x16 slot (x4 signal)
• Indicators: LED power, LED storage
• Brightness Knob: 1 x Brightness Adjustment Knob
• Power Input: 1 x 12V DC, Din4 pin connector

Control

• Buttons: 1 x Power Button; 1 x Reset Button

Accessory

• 100~240V AC to DC adapter
• Power cord
• VESA screws

Power

• Power Rating: 12V DC
• Adapter: 12V 120W

Technical specifications

• Model: R19IT7T-CHA1
• Brand: Winmate
• Display: 19.0", 1280 x 1024, 400 nits, resistive touch optional
• CPU: Intel® Core™ i5-1135G7 (Tiger Lake)
• Memory: up to 64GB (2 x SO-DIMM)
• Storage: 128GB SSD default; optional up to 4TB; M.2 NVMe support
• LAN: Dual Intel controllers (1 x 1Gb, 1 x 2.5Gb)
• I/O: 4 x USB 3.2, serial ports, DP1.4, optional HDMI 2.0, audio
• Power: 12V DC input (Din4); 12V 120W adapter
• Dimensions / Weight: 432 x 363 x 70 mm / 7.0 kg
• Mounting & Enclosure: VESA mount, metal housing, fanless
• Environmental: 0°C to 50°C operating; 10%–90% RH non-condensing
• Certifications: CE, FCC
