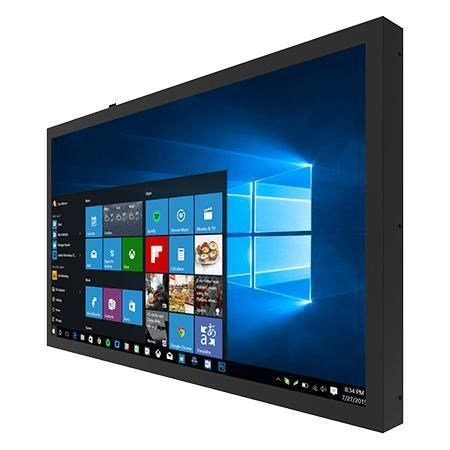

Resistive touch screen panel PC W22IT3S-CHA3

TFT LCD21.5"Intel® Core™ i5-1135G7

Overview
The W22IT3S-CHA3 is a 21.5-inch chassis Panel PC powered by Intel® Core™ i5-1135G7, engineered for machine control, factory automation and operator HMI. It features a fanless cooling concept, metal enclosure and multiple mounting options to support continuous industrial operation and system integration.

Key Features

• 21.5-inch TFT display, 1920 x 1080 (Full HD)
• Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz)
• Fanless thermal design and ultra-low power operation
• 1 x SO-DIMM DDR4 3200 MHz (up to 32 GB)
• Integrated dual Intel® Ethernet controllers (2 x 2.5 Giga LAN RJ45)
• M.2 storage: M.2 Key M (2242 SATA III) and optional M.2 2280 NVMe

Product Highlights

• Surface options: resistive touch screen (optional) or protection glass without touch (optional)
• Mounting: rear and VESA mounting solutions for flexible installation
• Flexible storage: default SSD with multiple optional capacities and optional 2.5" SATA bay
• Security support: TPM 2.0
• Optional connectivity: WLAN and Bluetooth via M.2 2230 E-Key

Certifications

• CE
• FCC

Technical specifications

• Model: W22IT3S-CHA3
• Display size: 21.5 inches
• Resolution: 1920 x 1080
• Panel brightness: 250 nits
• Contrast ratio: 3000:1
• Viewing angles: 89 / 89 / 89 / 89
• Active area: 476.64 x 268.11 mm
• Touch / Glass: Resistive Touch Screen (optional); Protection Glass without touch (optional)
• Processor: Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 4 GB default; options 8 GB, 16 GB, 32 GB (1 x SO-DIMM DDR4 3200 MHz)
• Storage: 128 GB SSD default; options 256 GB, 512 GB, 1 TB, 2 TB, 4 TB; 1 x SATA III for 2.5" SSD/HDD (optional, up to 2 TB)
• Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45)
• Security: TPM 2.0
• Operating systems (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (Wake on Touch not supported)
• WLAN / Bluetooth: optional (via M.2 2230 E-Key)
• USB ports: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial ports: 1 x RS232/422/485 (default RS232); 1 x RS232
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x speaker
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators: power LED; storage LED
• Brightness adjustment: 1 x brightness adjustment knob
• Power input: 1 x 12V DC, 2.5φ DC jack; adapter: 12V 120W (100–240V AC to DC)
• Dimensions (W x H x D): 506.5 x 302.5 x 76.5 mm
• Weight: 7.2 kg
• Mounting: VESA mount and rear mounting options
• Enclosure: metal housing
• Cooling: fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Accessories: 100–240V AC to DC adapter; power cord; VESA screws
• Buttons: 1 x power; 1 x reset
