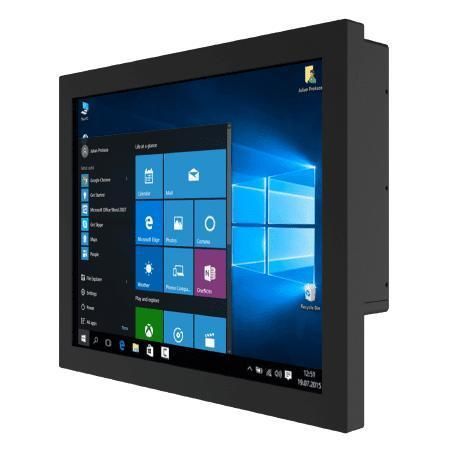

Resistive touch screen panel PC R19IT7T-CHM1

19"Intel® Core™ i5-1135G7Intel® Tiger Lake-U

Overview
Winmate R19IT7T-CHM1 is a 19-inch chassis Panel PC built for machine control, factory automation and operator HMI tasks. It integrates Intel® Core™ i5 (Tiger Lake) processors in a fanless metal housing with multiple mounting and I/O options to facilitate long-term deployments in industrial and embedded applications.

Key features

• Intel® Core™ Tiger Lake UP3: i5-1135G7 (without vPro) or i5-1145G7E (with vPro)
• 19.0-inch display, 1280 x 1024 resolution, 250 nits, 1000:1 contrast
• Multi-display support: DP / HDMI (optional) / LVDS / eDP
• Multiple I/Os: serial ports, 4 x USB 3.2 Gen1 Type-A, audio in/out
• 12V single-voltage DC input (Din4 pin connector)
• Fanless design and metal enclosure; rear and VESA mounting options
• TPM 2.0 security support; CE and FCC certifications

Display

• Size: 19.0 inches
• Resolution: 1280 x 1024
• Touch / Glass: Resistive touch optional; protection glass without touch optional
• Brightness: 250 nits; Contrast ratio: 1000:1; View angles: 85/85/80/80
• Active area: 376.32 x 301.06 mm

System specification

• Processor: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz); i5-1145G7E option
• Memory: 1 x SO-DIMM DDR4 3200 MHz (4GB default); optional 8/16/32GB; supports 2 x SO-DIMM up to 64GB depending on configuration
• Storage: 1 x M.2 2280 M-Key NVMe SSD 128GB (default); optional 256GB/512GB/1TB/2TB; optional 1 x SATA III for 2.5" SSD/HDD up to 2TB
• Ethernet: Dual Intel controllers (1 x Gigabit RJ45 + 1 x 2.5 Giga RJ45)
• Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi), 1 x PCIe 4.0 x16 slot (x4 signal)
• OS: Optional Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04 (Wake on Touch not supported)

Mechanical

• Dimensions: 432 x 363 x 70 mm
• Weight: 7.0 kg
• Enclosure: metal housing
• Mounting: rear mount and VESA mount options
• Cooling: fanless design

Environment

• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non-condensing

IO Ports & Control

• USB: 4 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 1 x Gigabit RJ45 + 1 x 2.5 Giga RJ45
• Video: 1 x DP1.4 (default); HDMI 2.0 optional
• Audio: Mic in, Line out
• Indicators & controls: power and storage LEDs; brightness adjustment knob; power and reset buttons

Power & Accessories

• Power input: 1 x 12V DC (Din4 pin connector)
• Typical adapter: 12V 120W (optional)
• Included/available accessories: 100~240V AC to DC adapter, power cord, VESA screws

Certifications

• CE
• FCC

Recommended applications

• Machine control
• Factory automation
• Operator HMI stations
• Embedded industrial systems requiring long lifecycle and stable hardware integration

Technical specifications

• Model: R19IT7T-CHM1
• Brand: Winmate
• Display: 19.0 inches / 1280 x 1024 / 250 nits
• Processor options: Intel Core i5-1135G7 / i5-1145G7E
• Memory: up to 64GB (configuration dependent)
• Storage: M.2 NVMe 2280 + optional 2.5" SATA III
• Ethernet: 1 x Gigabit + 1 x 2.5 Gigabit
• I/O: 4 x USB3.x, serial ports, DP1.4, optional HDMI 2.0, audio in/out
• Expansion: M.2 2280 M-Key, M.2 2230 E-Key, PCIe 4.0 x16 (x4 signal)
• Power: 12V DC (Din4)
• Dimensions / Weight: 432 x 363 x 70 mm / 7.0 kg
• Mounting: rear / VESA
• Cooling: fanless
