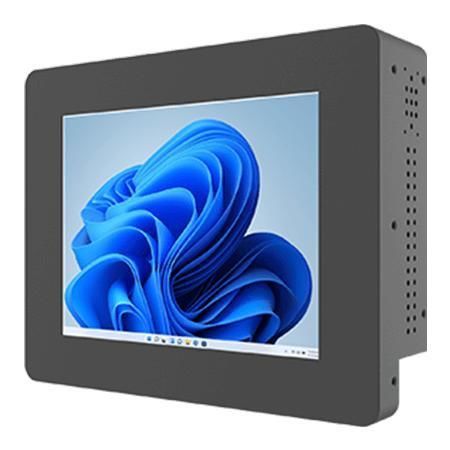

Resistive touch screen panel PC R08IAN3S-CHU1

TFT LCD8.4"Intel® Processor N100

Overview
The Winmate R08IAN3S-CHU1 is an 8.4" chassis panel PC built around Intel® Twin Lake N150 / N100 class processors for machine control, factory automation and operator HMI tasks. Designed for embedded and industrial applications, it provides an SVGA display, fanless metal enclosure and extensive I/O for system integration.

Key Features

• 8.4" SVGA (800 x 600) TFT LCD, 600 nits
• Intel® Processor N100 (default) or N150 (optional)
• 1 x SO-DIMM DDR5-4800, up to 16 GB
• 2 x Intel® 2.5 Gigabit Ethernet
• Multiple USB ports: USB-C (DP-Alt), USB 3.2 Gen2/Gen1 Type-A, USB 2.0
• Multiple COM (serial) ports and optional HDMI
• VESA mount support, fanless metal housing

Display

• Size: 8.4 inches
• Resolution: 800 x 600 (SVGA)
• Brightness: 600 nits
• Contrast Ratio: 600:1
• Viewing Angles: 75/75/60/70
• Active Area: 170.4 x 127.8 mm
• Touch options: Resistive touch or protection glass (both optional)

System Specification

• Processor: Intel® N100 (up to 3.40 GHz) default; Intel® N150 (up to 3.60 GHz) optional
• Memory: 4 GB default; configurable to 8 GB or 16 GB (SO-DIMM DDR5-4800)
• Storage: 128 GB NVMe SSD default; optional 256 GB–4 TB; 1 x SATA III for 2.5" SSD/HDD (available if NVMe not present)
• Security: TPM 2.0
• OS options: Windows 11 IoT Enterprise, Windows 11 Pro, Ubuntu 24.04 (optional)
• WLAN/BT: optional via M.2 2230 E-Key

Mechanical

• Dimensions: 236 x 190 x 60 mm
• Weight: ~2.2 kg
• Mounting: VESA
• Enclosure: Metal housing
• Cooling: Fanless design

Environment

• Operating humidity: 10%–90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C

Certification

• CE
• FCC

I/O Ports

• USB: 1 x USB 3.2 Gen2 Type-C (DP-Alt), 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN (RJ45)
• Video: 1 x HDMI 2.0b (optional)
• Audio: 2 x speakers
• Expansion: 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators: LED power and LED storage; 1 x brightness adjustment knob
• Power input: 1 x 12V DC, 2.5φ DC jack

Control

• 1 x Power button; 1 x Reset button

Accessories

• 100–240V AC to DC adapter
• Power cord
• VESA screws

Technical specifications

• Model: R08IAN3S-CHU1
• Display: 8.4" SVGA (800 x 600), 600 nits, 600:1 contrast
• Processor options: Intel® N100 (default) / Intel® N150 (optional)
• Memory: SO-DIMM DDR5-4800, up to 16 GB
• Storage options: NVMe SSD 128 GB–4 TB; optional 2.5" SATA up to 2 TB
• Networking: Dual Intel® 2.5 Gigabit Ethernet
• Security: TPM 2.0
• Mechanical: 236 x 190 x 60 mm, ~2.2 kg, metal housing, VESA, fanless
• Environment: 0°C–50°C operating; -10°C–60°C storage; 10%–90% RH non-condensing
• Certifications: CE, FCC
