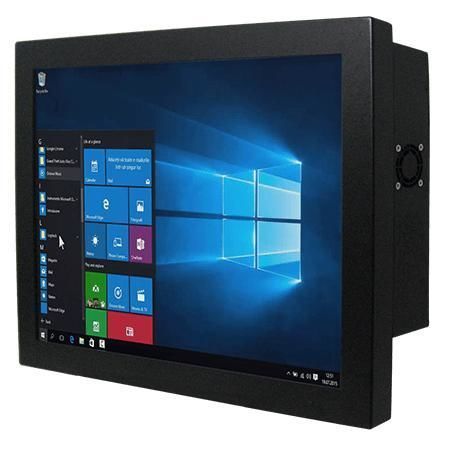

Resistive touch screen panel PC R15IP7T-CHC3

LCD15"Intel® Pentium® N4200

Overview
Winmate R15IP7T-CHC3 is a 15-inch chassis Panel PC powered by Intel® Pentium® N4200 (Apollo Lake), developed for machine control, factory automation and operator HMI. It combines flexible storage, multiple I/O, TPM security and a fanless metal housing for reliable 24/7 industrial use.

Key Features

• Intel® Pentium® N4200 (1.10 GHz base, up to 2.5 GHz)
• Flexible storage: 1 x 2.5" HDD bay, M.2 2242 B-key slot, optional 2 x SATA III (2.5")
• Multiple I/Os: 4 x USB 3.0 (Type-A), 2 x Gigabit LAN (RJ45), serial ports (RS232/422/485)
• 12 V DC input (Din4-pin); fanless design and metal enclosure
• Video outputs: DisplayPort 1.2 (4K@60Hz), HDMI 1.4 (4K@30Hz, optional), VGA (optional)

Product Details

• Touch / Surface: Optional resistive touch or protection glass without touch for non-interactive installations.
• Thermal & Power: Low power consumption with passive cooling; typical adapter 12 V 50 W.
• Mounting: Rear and VESA mounting options for panel, cabinet or OEM integration.
• Security & Connectivity: TPM 2.0, optional M.2 2230 E-key for Wi‑Fi/Bluetooth.

Certifications

• CE
• FCC

Technical Specifications

• Model: R15IP7T-CHC3; Brand: Winmate
• Display: 15.0" 1024 x 768, 300 nits, contrast 2000:1, active area 304.1 x 228.1 mm
• Memory: Dual-channel SO-DIMM (DDR3L), up to 16 GB
• Storage: 128 GB SSD default; optional 256/512 GB/1 TB; 1 x M.2 2242 (SATA), optional 2 x SATA III
• LAN: 2 x Gigabit Ethernet; Serial: configurable RS232/422/485 ports
• Audio: Mic-in, Line-out, 2 x speakers
• Expansion: 1 x PCIe 2.0 x1; indicators: power and storage LEDs; brightness knob
• Mechanical: 360 x 290 x 70 mm; Weight ~4.2 kg; Metal housing, fanless
• Environment: Operating 0°C to 50°C; Storage -10°C to 60°C; Humidity 10%–90% RH (non-condensing)
• OS: Optional Windows 10 IoT Enterprise (64-bit) or Linux Ubuntu
• Accessories: 100~240V AC-DC adapter, power cord, VESA screws, manual
