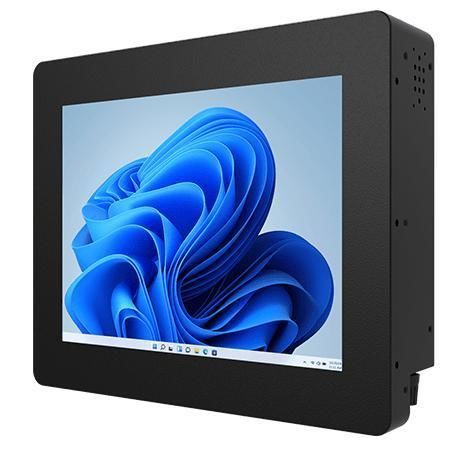

Resistive touch screen panel PC R10IAN3S-CHA1WT

LCDTFT LCD10.4"

Overview
The Winmate R10IAN3S-CHA1WT is a 10.4-inch chassis wide-temperature Panel PC powered by Intel® Twin Lake N150 (N100 family variant). Designed for machine control, factory automation and operator HMI applications, it combines a fanless metal enclosure, VESA mounting and multiple I/O options for system integration in harsh industrial environments.

Key Features

• 10.4" XGA TFT LCD (800 x 600), 400 nits, 700:1 contrast
• Intel® Twin Lake N150 (Intel® Processor N100 family referenced in specs)
• 1 x SO-DIMM DDR5-4800, up to 16 GB (8 GB default)
• 2 x Intel® 2.5 Gigabit Ethernet (RJ45)
• I/O: 1 x HDMI (optional), 1 x USB 3.2 Gen2 Type-C (DP Alt Mode), 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0, 4 x COM
• Wide operating temperature: -20°C to 60°C; fanless metal chassis
• VESA mount support and M.2 expansion (NVMe, Wi‑Fi)

Certifications

• CE
• FCC

Product Highlights
The chassis Panel PC offers clear XGA visuals and versatile I/O for automation systems, dual 2.5 GbE for high-speed industrial networking, modular storage (M.2 NVMe + optional SATA 2.5") and TPM 2.0. Configurable OS options include Windows 11 IoT Enterprise, Windows 11 Pro and Linux Ubuntu 24.04 (Ubuntu does not support Wake on Touch). Ideal for OEMs and system integrators requiring long lifecycle availability and field serviceability.

Specifications

• Model: R10IAN3S-CHA1WT
• Display: 10.4 inches, 800 x 600 (XGA); Active area 211.2 x 158.4 mm; View angles 80/80/70/60
• Touch/Glass: Resistive touch (optional); Protection glass without touch (optional)
• Processor: Intel® Processor N100 / Twin Lake N150 family, up to 3.40 GHz, 6M Cache
• Memory: 1 x SO-DIMM DDR5-4800, 8GB default, up to 16GB
• Storage: 1 x M.2 2280 M-Key NVMe SSD 128GB default (options to 4TB); 1 x SATA III for 2.5" SSD/HDD (available only if NVMe not installed)
• Ethernet: 2 x Intel® 2.5 Gigabit Ethernet controllers
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 24.04
• Audio: 2 x Speaker
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators & Controls: Power LED, Storage LED, Power button, Reset button, Brightness adjustment knob
• Power: 1 x 12V DC 2.5φ jack; adapter 12V 50W (100~240V AC to DC adapter included option)
• Mechanical: 270 x 225 x 60 mm; Weight 2.6 kg; Metal housing; VESA mount
• Environment: Operating humidity 30%–90% RH non-condensing; Operating temp -20°C to 60°C; Storage temp -25°C to 65°C
• Accessories: Power cord, VESA screws
