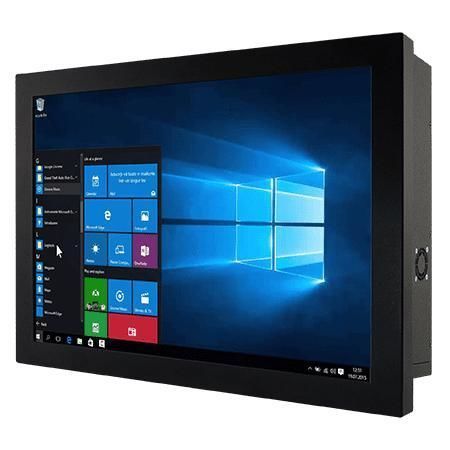

Resistive touch screen panel PC W18IF7T-CHA2

TFT LCD18.5"Intel® Core™ i7-9700TE

Overview
Winmate W18IF7T-CHA2 is an 18.5" chassis panel PC designed for machine control, factory automation and operator HMI. It is powered by Intel® 9th Gen Core™ i3/i5/i7 (Coffee Lake Refresh) processors and provides flexible storage, multiple industrial I/O, low‑power operation and several mounting options. Video outputs support high resolutions (DP up to 4096×2304 @60 Hz; HDMI up to 4096×2304 @24 Hz) for external displays.

Key features

• 18.5" TFT LCD, 1366×768, 450 nits
• Intel® 9th Gen Core™ i3 / i5 / i7 processors (Coffee Lake Refresh)
• Flexible storage: M.2 NVMe/SATA, 2 x SATA III for 2.5" SSD/HDD; default SSD options
• Multiple I/O: 2 x serial ports, 4 x USB 3.2 Gen1 (Type-A), 2 x Gigabit LAN
• 12V DC input (locking Din4 connector) and external 12V 120W adapter
• Mounting: rear mount and VESA for panel or cabinet integration

Product highlights

• Surface options: resistive touch screen or protective glass (non‑touch) to suit operator environments
• Industrial design: metal housing, fan cooling and TPM 2.0 for system security
• Expansion: M.2 2280/2242 M-Key (NVMe/SATA), M.2 2230 E-Key for Wi‑Fi, optional PCIe 3.0 x16

Certifications

• CE
• FCC

Technical specifications

• Model: W18IF7T-CHA2
• Display — Size: 18.5"; Resolution: 1366×768; Brightness: 450 nits; Contrast: 1000:1; Active area: 409.8×230.4 mm; Touch/Glass: Resistive touch (optional) / Protection glass (optional)
• Processor — Default: Intel® Core™ i7-9700TE 1.8 GHz (up to 3.8 GHz); Options: i5-9500TE, i3-9100TE
• Chipset — Intel® Q370
• Memory — 2 x non‑ECC SO‑DIMM, up to 64 GB
• Storage — Default 128 GB SSD; optional 256/512 GB / 1 TB / 2 TB; M.2 2280 M‑Key (NVMe/SATA); 2 x SATA III (2.5" SSD/HDD), RAID 0/1 optional
• Ethernet — 2 x Intel® Gigabit Ethernet (RJ45)
• Security — TPM 2.0
• OS — Optional Windows 10 IoT Enterprise (64-bit) or Linux Ubuntu
• Wireless — WLAN/Bluetooth optional via M.2 2230 E-Key
• Mechanical — Dimensions: 470×293×70 mm; Weight: ~6.6 kg; Enclosure: metal; Cooling: fan design; Mounting: VESA
• Environment — Operating humidity 10%–90% RH non‑condensing; Operating temperature 0°C–50°C; Storage temperature -10°C–60°C
• I/O Ports — 4 x USB 3.2 Gen1 Type‑A; Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232; LAN: 2 x RJ45; Video: 1 x DP1.2 (default), 1 x HDMI 1.4 (optional); Audio: Mic‑in, Line‑out, 2 x speakers
• Indicators & controls — Power and storage LEDs; brightness adjustment knob; Power and Reset buttons
• Power & accessories — Power input: 1 x 12V DC Din4 lockable; Adapter: 12V 120W; Accessories: AC adapter, power cord, VESA screws, driver CD & manual
