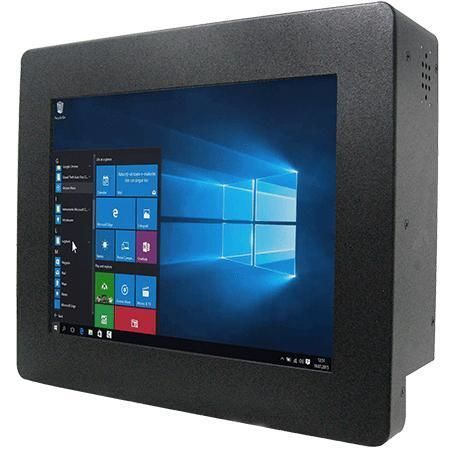

Resistive touch screen panel PC R10IE3S-CHA1WT

TFT LCD10.4"Intel® Celeron® N6211

Overview
Winmate R10IE3S-CHA1WT is a 10.4" chassis wide-temperature Panel PC built for machine control, factory automation and operator HMI. It features an Intel® Celeron® N6211 processor, fanless metal chassis, IP65 front and multiple mounting options for industrial deployments.

Key Features

• 10.4" TFT LCD, 800 x 600, 400 nits
• Intel® Celeron® Elkhart Lake N6211 processor (up to 3.0 GHz)
• 1 x SO-DIMM, up to 16 GB DDR4
• 2 x 2.5 Giga LAN (Intel® Ethernet Controllers)
• Support for 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen2x1, 4 x USB 2.0
• Front protection IP65; chassis for wide temperature operation

Display

• Size: 10.4 inches
• Touch / Glass: Resistive touch (optional); Protection glass without touch (optional)
• Resolution: 800 x 600
• Brightness: 400 nits
• Contrast Ratio: 700:1
• View Angles: 80/80/70/60
• Active Area: 211.2 x 158.4 mm

System Specification

• Processor: Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory: 4 GB (default); optional 8 GB, 16 GB; 1 x SO-DIMM
• Storage: 128 GB SSD (default); optional 256/512 GB, 1 TB, 2 TB; 1 x SATA III for 2.5" SSD/HDD (optional)
• Ethernet controller: 2 x Intel® Ethernet Controller
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Windows 10 IoT Enterprise (64-bit), Linux Ubuntu 22.04
• WLAN / Bluetooth: optional

Mechanical

• Dimensions: 270 x 225 x 60 mm
• Weight: 2.6 kg
• Mounting: rear and VESA mount
• Enclosure: metal housing
• Cooling: fanless design

Environment

• Operating Temperature: -20°C to 60°C
• Storage Temperature: -25°C to 65°C
• Operating Humidity: 30%–90% RH, non‑condensing

Certification

• CE
• FCC

IO Ports

• USB: 2 x USB 3.2 Gen2x1 (Type-A), plus additional USB 2.0 ports
• Serial: 1 x RS232/422/485 (default RS232), 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: HDMI 2.0 (optional)
• Audio: 2 x speaker
• Expansion: 1 x M.2 2242 B-Key (SATA III); 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators: power LED, storage LED; 1 x brightness adjustment knob
• Power Input: 1 x 12V DC, 2.5φ DC jack

Control

• Buttons: 1 x power button; 1 x reset button

Accessories

• 100~240V AC to DC adapter
• Power cord
• VESA screws

Power

• Power rating: 12V DC
• Adapter: 12V 50W

Technical specifications

• Model: R10IE3S-CHA1WT
• Brand: Winmate
• Display: 10.4" TFT LCD, 800 x 600, 400 nits, 700:1
• CPU: Intel® Celeron® N6211
• Memory: 4 GB default, up to 16 GB DDR4 (SO-DIMM)
• Storage: 128 GB SSD default; options up to 2 TB; 1 x SATA III (2.5")
• LAN: 2 x Intel® Ethernet / 2 x 2.5 Giga LAN
• Serial: RS232/422/485 and RS232
• USB: 2 x USB 3.2 Gen2x1 (Type-A) plus USB 2.0 ports
• Expansion: M.2 2242 B-Key (SATA III); M.2 2230 E-Key (Wi‑Fi)
• Power Input: 12V DC (2.5φ DC jack); adapter 12V 50W
• Dimensions: 270 x 225 x 60 mm; Weight: 2.6 kg
• Operating Temp: -20°C to 60°C; Storage Temp: -25°C to 65°C
• Mounting: VESA; Enclosure: metal housing; Cooling: fanless
• Security: TPM 2.0; Certifications: CE, FCC
• Typical applications: machine control, factory automation, operator HMI, embedded industrial deployments
