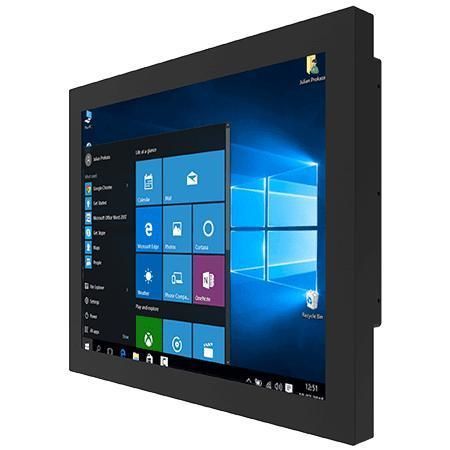

Resistive touch screen panel PC R17IT3S-CHM1

TFT LCD17"Intel® Core™ i5-1135G7

Product overview
Winmate R17IT3S-CHM1 is a 17" chassis Panel PC powered by Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz). Designed for machine control, factory automation and operator HMI, it provides fanless cooling, selectable front surface (resistive touch or protection glass) and multiple mounting options for industrial installations.

Key features

• 17" TFT XGA (1280 x 1024), 350 nits, 1000:1
• Intel® Core™ i5-1135G7 processor
• Fanless cooling and ultra-low power design
• 1 x SO-DIMM DDR4 3200 MHz (up to 32GB)
• Integrated dual Intel® Ethernet controllers (2 x 2.5G LAN)
• M.2 Key M slot for M.2 2242 SATA III SSD; optional M.2 2280 NVMe

Certifications
CE, FCC

Display
Size: 17.0 inches
Resolution: 1280 x 1024
Touch / Glass: Resistive Touch Screen (Optional); Protection Glass without touch (Optional)
Brightness: 350 nits
Contrast Ratio: 1000:1
View Angles: 85/85/80/80

System Specification
Processor: Intel® Core™ i5-1135G7 2.4 GHz (up to 4.2 GHz)
Memory: 4GB (default); optional 8/16/32GB
Storage: 128GB SSD (default); optional 256/512GB/1TB/2TB/4TB; 1 x SATA III for 2.5" SSD/HDD (optional)
Security: TPM 2.0
OS: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04 (optional)
WLAN / Bluetooth: optional (M.2 2230 E-Key)

Mechanical
Dimensions: 394 x 332 x 69 mm
Weight: 6.3 kg
Mounting: Rear and VESA mount
Enclosure: Metal housing
Cooling: Fanless design

Environment
Operating temperature: 0°C to 50°C
Storage temperature: -10°C to 60°C
Operating humidity: 10% to 90% RH, non-condensing

IO Ports
USB: 2 x USB3.2 Gen2 Type-A
Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
LAN: 2 x 2.5G RJ45
Video: 1 x HDMI 2.0 (optional)
Audio: 2 x speakers
Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)

Control
Buttons: 1 x Power; 1 x Reset

Accessories
Included/optional: 100~240V AC to DC adapter; power cord; VESA screws

Power
Power input: 12V DC (2.5φ DC jack)
Adapter: 12V 120W

Applications
Machine control, factory automation, operator HMI, OEM integration

Technical specifications

• Model: R17IT3S-CHM1
• Brand: Winmate
• Display: 17.0" XGA (1280 x 1024), 350 nits, 1000:1
• Processor: Intel® Core™ i5-1135G7
• Memory: SO-DIMM DDR4 3200 MHz, up to 32GB
• Storage: 128GB SSD default; M.2 Key M and SATA support
• LAN: Dual Intel® Ethernet controllers (2 x 2.5G)
• Touch: Resistive or protection glass (optional)
• Mounting: Rear and VESA
• Housing: Metal, fanless
• IO: 2 x USB3.2 Gen2, serial, HDMI 2.0 (opt.), audio
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04
• Operating conditions: 0°C–50°C; 10%–90% RH non-condensing
• Certifications: CE, FCC
• Dimensions & weight: 394 x 332 x 69 mm; 6.3 kg
• Power: 12V DC input; 12V 120W adapter
