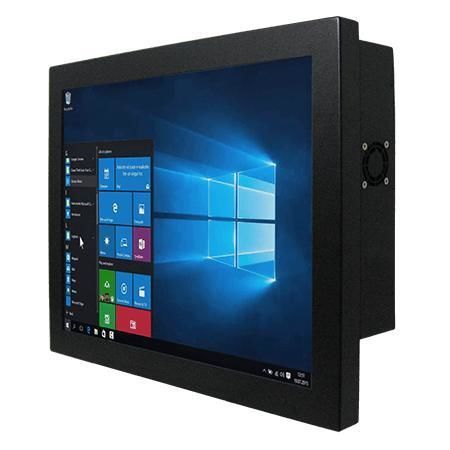

Resistive touch screen panel PC R19IP7T-CHA1

19"Intel® Pentium® N42001280 x 1024

Overview
The Winmate R19IP7T-CHA1 is a 19" fanless chassis panel PC built for machine control, factory automation and operator HMI. It combines a low-power Intel® Pentium® N4200 processor with flexible storage and multiple I/O options for industrial integration and long-term field deployment.

Key features

• Intel® Pentium® N4200 (Apollo Lake), 1.10 GHz (burst up to 2.5 GHz)
• Flexible storage: 2.5" HDD bay, SSD socket and M.2 slots
• Rich I/O: 2 x serial, 4 x USB 3.0 Type-A, 2 x Gigabit LAN
• 12 V DC input (DIN4 pin); DisplayPort and HDMI video support
• Fanless metal chassis with VESA and rear mounting options

Main product details
Display

• Size: 19.0"
• Touch / Glass: Resistive touch optional; protective glass option
• Resolution: 1280 x 1024
• Brightness: 400 nits; Contrast: 1000:1; Viewing angles: 85/85/80/80
• Active area: 376.32 x 301.06 mm

System specification

• Processor: Intel® Pentium® N4200 (1.1 GHz, up to 2.5 GHz)
• Memory: Dual-channel SO-DIMM (non-ECC), up to 16 GB
• Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB; optional 2 x SATA III for 2.5" drives (RAID optional)
• Ethernet: 2 x Intel® Gigabit LAN (RJ45); TPM 2.0 security
• OS: Windows 10 IoT Enterprise 64-bit (optional); Linux Ubuntu 20.04 (optional)
• WLAN/BT: optional via M.2 slot

Mechanical

• Dimensions: 432 x 363 x 70 mm
• Weight: 7.0 kg
• Mounting: VESA and rear mounting options
• Enclosure: metal housing; Cooling: fanless design

Environment

• Operating humidity: 10%–90% RH non-condensing
• Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C

I/O ports & expansion

• USB: 4 x USB 3.2 Gen1 Type-A
• Serial: 1 x RS232/422/485 (default RS232), 1 x RS232
• LAN: 2 x Gigabit LAN (RJ45)
• Video: 1 x DisplayPort 1.2 (default); 1 x HDMI 1.4 (optional); 1 x VGA (optional)
• Audio: Mic in, Line out, 2 x speaker
• Expansion: M.2 2242 B-key (SATA SSD), M.2 2230 E-key (Wi‑Fi), PCIe 2.0 x1
• Indicators & controls: power/storage LEDs, brightness knob, power/reset buttons
• Power input: 12 V DC (DIN4)

Control & accessories

• Buttons: Power, Reset
• Accessories: 100~240 V AC to DC adapter, power cord, VESA screws

Certifications

• CE
• FCC

Technical specifications

• Model: R19IP7T-CHA1
• Display: 19.0" 1280 x 1024, 400 nits, resistive touch optional
• CPU: Intel® Pentium® N4200
• Memory: up to 16 GB SO-DIMM
• Storage: 128 GB SSD default; options up to 1 TB; dual 2.5" SATA optional
• LAN: 2 x Gigabit; USB: 4 x USB 3.0; Serial: RS232/422/485 + RS232
• Power: 12 V DC (DIN4), adapter 12 V 84 W
• Dimensions / Weight: 432 x 363 x 70 mm / 7.0 kg
• Operating temp/humidity: 0°C–50°C; 10%–90% RH non-condensing
