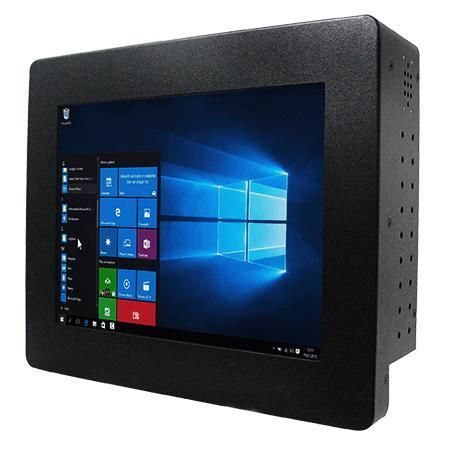

Resistive touch screen panel PC R10IP7T-CHA1WT

LCD10.4"Intel® Pentium® N4200

Overview
The Winmate R10IP7T-CHA1WT is a 10.4-inch chassis wide-temperature industrial Panel PC for HMI, machine control and factory automation. Designed for continuous field operation, it provides flexible storage, multiple I/O and support for extended operating temperatures.

Key features

• Intel® Pentium® N4200 processor (1.10 GHz base, up to 2.5 GHz); some SKUs may use Intel® Celeron® N2930
• Flexible storage: M.2 2242 slot and a 2.5" SATA bay (SSD/HDD); default 128 GB SSD, optional up to 1 TB
• Multiple I/O: 4 x USB 3.2 Gen1 Type-A, serial ports (RS232/422/485), 2 x Gigabit LAN
• Video outputs: DisplayPort 1.2 (default), optional HDMI 1.4 and VGA
• 12 V DC power input, adapter options available

Product details
Available with a resistive touch panel or protection glass without touch to match different HMI needs. Low-power design with effective thermal management for continuous operation. Multiple mounting options including rear and VESA mounting.

Display (summary)

• Size: 10.4 inches
• Resolution: 800 x 600
• Brightness: 400 nits
• Contrast ratio: 700:1
• Viewing angles: 80 / 80 / 70 / 60
• Active area: 211.2 x 158.4 mm
• Touch / glass: Resistive touch (optional); protection glass without touch (optional)

System specification (summary)

• Processor: Intel® Pentium® N4200 (1.1 GHz base, up to 2.5 GHz)
• Memory: Dual-channel SO-DIMM (non‑ECC), up to 16 GB
• Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB; 2 x SATA III for 2.5" drives
• Ethernet: 2 x Intel® Gigabit Ethernet controllers
• Security: TPM 2.0
• OS (optional): Windows 10 IoT Enterprise (64-bit), Linux Ubuntu 18.04 / 20.04
• WLAN/BT: optional via M.2 2230 E-key

Environment

• Operating temperature: -20 °C to 60 °C
• Storage temperature: -25 °C to 65 °C
• Operating humidity: 30% to 90% RH, non‑condensing

Certifications

• CE
• FCC

I/O and expansion

• USB: 4 x USB3.2 Gen1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232 (configurable)
• LAN: 2 x Gigabit RJ45
• Video: 1 x DP1.2 (default); HDMI 1.4 and VGA optional
• Audio: Mic-in, Line-out, 2 x speakers
• Expansion: 1 x M.2 2242 B-key (SATA III SSD), 1 x M.2 2230 E-key (Wi‑Fi), 1 x PCIe 2.0 x1
• Controls: power and storage LEDs, brightness adjustment knob, power and reset buttons
• Power input: 12 V DC (Din4); adapter 12 V 50 W (included/optional)
