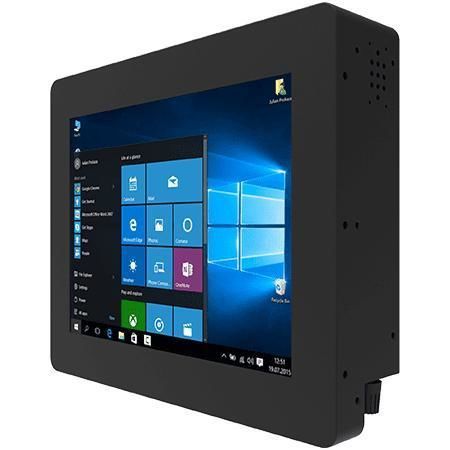

Resistive touch screen panel PC R10IT3S-CHT2

TFT LCD10.4"Intel® Core™ i5-1135G7

Overview
Winmate R10IT3S-CHT2 is a 10.4-inch chassis panel PC for machine control, factory automation and operator HMI. It combines a compact chassis design with a fanless cooling system, metal housing and multiple mounting options for easy integration into control cabinets and tight spaces.

Key features

• 10.4 inch TFT XGA (1024 x 768), 500 nits
• Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz)
• Fanless cooling and low power consumption
• 1 x SO-DIMM DDR4 3200 MHz (Max. 32 GB)
• Integrated dual Gigabit Ethernet / 2 x 2.5 Giga LAN
• M.2 Key M for M.2 2242 SATA III; optional M.2 2280 NVMe

Product highlights

• Touch options: resistive touch or protection glass (both optional)
• Multiple mounting: rear and VESA mounting for cabinet or panel integration
• Rugged metal housing suitable for industrial environments
• Flexible storage and OS options to fit automation and HMI applications

Certifications
CE, FCC

Technical specifications

• Model: R10IT3S-CHT2
• Display: 10.4 inches, 1024 x 768 (XGA), 500 nits, 1000:1 contrast
• Processor: Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 4 GB default; optional 8/16/32 GB (1 x SO-DIMM, DDR4 3200 MHz)
• Storage: 128 GB SSD default; optional 256/512 GB/1/2/4 TB; 1 x SATA III for 2.5" drive (optional)
• Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Ubuntu 22.04
• IO: 2 x USB 3.2 Gen2 (Type-A); 1 x RS232/422/485 (default RS232); 1 x RS232; 1 x HDMI 2.0 (optional)
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)
• Mechanical: 270 x 225 x 60 mm; weight 2.6 kg; metal housing; VESA and rear mount
• Power: 12V DC input (2.5φ), adapter 12V 120W included
• Environment: Operating 0°C to 50°C; storage -10°C to 60°C; humidity 10%–90% RH non-condensing
