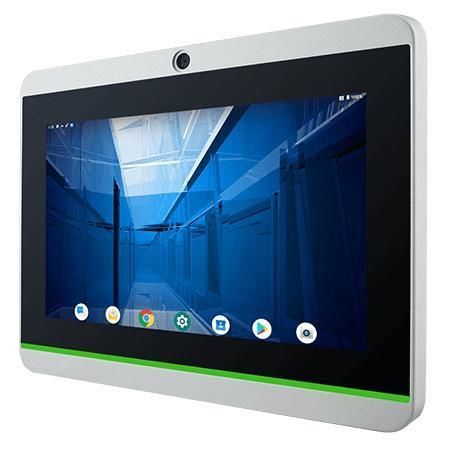

Multitouch screen panel PC W07IQ3S-PCT1AC-POE

PCAP capacitive touch screen7"1024 x 600

Overview
Winmate W07IQ3S-PCT1AC-POE is a 7-inch Qualcomm Snapdragon 660 S Series HMI Panel PC designed for machine control, factory automation and operator HMI. It features a slim metal enclosure, fanless cooling for ultralow power consumption, front IP65 protection, Power over Ethernet (PoE) support and optional 2MP front camera and HF RFID reader. The device targets industrial buyers, OEMs and system integrators requiring a compact, reliable HMI for rugged or mission-critical environments.

Key Features

• 7-inch 1024 x 600 display with Projected Capacitive Multi-Touch (P-CAP)
• Fanless cooling and ultralow power consumption
• Power over Ethernet (PoE) support (IEEE 802.3at, 25 W)
• Optional 2MP front camera
• Optional HF RFID/NFC reader (13.56 MHz)
• Front IP65 protection against dust and splashes
• Built-in RGB LED status light bar
• Thin, flat design suitable for access control, room booking and information terminals

Product Highlights

• Power over Ethernet: Data and power over a single cable simplify installation and centralize power management for access control and automation deployments.
• Slim design: Approximately 35% thinner than traditional panel PCs; flat surface for easy cleaning and maintenance.
• P-CAP touch: Glass cover lens with scratch resistance; supports 4-point multi-touch for finger operation.
• LED light bar & HF RFID/NFC: Built-in RGB LED light bar (programmable red/green/blue/orange) for remote status indication; optional HF RFID/NFC for limited access control.
• Front IP65: Sealed front to protect against dust and water splashes in industrial and public environments.

Certifications

• CE
• FCC

Characteristics / Technical Specifications

• Display: Size: 7.0 inches; Touch/Glass: Projected Capacitive Multi-Touch Screen; Resolution: 1024 x 600; Brightness: 320 nits; Contrast Ratio: 1000:1; View Angles: 75/75/75/70; Active Area: 153.6 x 90 mm.
• System: Processor: Qualcomm Snapdragon 660 (Octa-Core 2.2 GHz); Memory: 3 GB LPDDR4; Storage: 32 GB eMMC onboard; OS: Android 9.0; WLAN: optional; Bluetooth: optional; RFID: HF RFID Reader 13.56 MHz (optional); Light Bar: Built-in RGB LED status light bar on both sides.
• Mechanical: Dimensions: 189.4 x 145.4 x 36.1 mm; Cut-out: 175.5 x 131.5 mm; Weight: ~1.0 kg; Mounting: Panel mount and VESA mount; Enclosure: Metal housing; Cooling: Fanless design.
• Environment: Operating Humidity: 10% to 90% RH non-condensing; Operating Temperature: 0°C to 50°C; Storage Temperature: -20°C to 60°C; Shock: MIL-STD-810G Method 516.6 Procedure I; Vibration: MIL-STD-810G Method 514.6 Procedure I; Front IP rating: IP65.
• IO Ports: USB: 2 x USB 2.0 (Type A), 1 x USB 3.0 (Type-C); Serial: 1 x RS232/422/485 (default RS232); LAN: 1 x LAN PoE (at/af); Video: 1 x Micro HDMI (optional); Audio: 1 x Speaker; SD: 1 x Micro SD card slot.
• Power: Rated: 12V DC via terminal block; Adapter: 12V 50W (accessory); PoE (PD): IEEE 802.3at (25 W).
• Camera: Front camera: 2 MP (optional).
• Accessories: 100~240V AC to DC adapter; Power cord; Terminal block to 2.5Ø female adapter cable; Open wire cable with terminal block connector; Manual; VESA screws.
• Other: Fanless operation, ultralow power consumption; Designed for machine control, factory automation and operator HMI; Built-in RGB LED status light bar supports configurable signaling.
