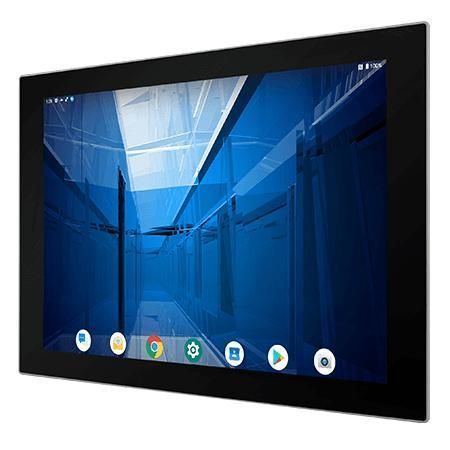

Multitouch screen panel PC R15IQ3S-PCC3-POE

TFT LCDPCAP capacitive touch screen15"

Overview
The R15IQ3S-PCC3-POE is a 15-inch industrial HMI panel PC powered by a Qualcomm Snapdragon 660 (S Series). It is engineered for machine control, factory automation and operator HMI applications, offering a slim fanless design, front IP65 protection and Power over Ethernet (PoE) capability. Optional modules include a 2MP front camera and HF RFID reader for access control and room information use cases.

Key Features

• 15-inch 1024 x 768 TFT LCD with projected capacitive multi-touch (PCAP)
• Fanless cooling and ultra-low power consumption
• Supports Power over Ethernet (PoE), PD follows IEEE 802.3at
• Optional 2MP front camera
• Optional HF RFID reader (13.56 MHz)
• Thin, true-flat front design for easy cleaning
• Front side sealed to IP65 (water and dust proof)

Product highlights
PoE reduces cabling by combining data and power in a single cable and enables centralized power management. The S-Series thin profile (approximately 35% thinner than traditional panel PCs) provides a flat, easy-to-clean front surface. The PCAP glass cover supports 4-point multi-touch and resists scratches. Front IP65 sealing protects against dust and water splashes, making the unit suitable for industrial operator stations and access control terminals.

Certifications
CE, FCC

Technical specifications

• Display Size: 15.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
• Resolution: 1024 x 768
• Panel Brightness: 300 nits
• Contrast Ratio: 2000:1
• Active Area: 304.1 x 228.1 mm
• Processor: Qualcomm Snapdragon 660 (Octa-Core 2.2 GHz)
• Memory: 3 GB LPDDR4
• Storage: eMMC onboard 32 GB
• Operating System: Android 9.0
• Wireless: WLAN/Bluetooth optional
• RFID: HF 13.56 MHz optional
• Dimensions: 363.4 x 277.86 x 44.5 mm
• Cut out: 346.5 x 261 mm
• Weight: 3.6 kg
• Mounting: Panel mount / VESA mount
• Enclosure: Metal housing
• Cooling: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Shock / Vibration: MIL-STD-810G
• IP rating: Front IP65
• IO Ports: 2 x USB 2.0 (Type A); 1 x USB 3.0 (Type-C)
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 1 x LAN (PoE at/af)
• Video: 1 x Micro HDMI (optional)
• Audio: 2 x speaker
• SD Card Slot: 1 x Micro SD
• Power: 12V DC terminal block default; 9~36V optional; Adapter 12V 50W
• PoE: PD follows IEEE 802.3at (25 W)
• Accessory examples: AC-DC adapter, power cord, terminal block adapters, VESA screws
• Camera: Front 2MP optional
