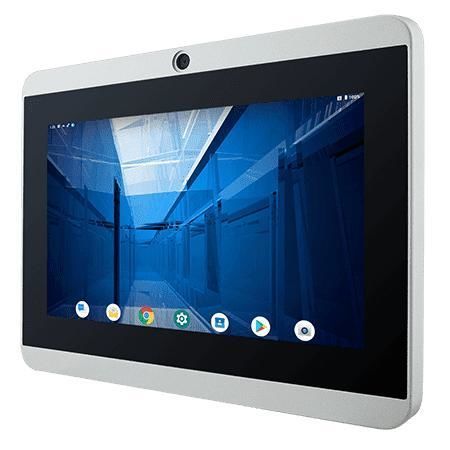

Multitouch screen panel PC W07IM3S-PCO1-POE

PCAP capacitive touch screen1000 nits7"

Overview
Winmate W07IM3S-PCO1-POE is a 7-inch HMI panel PC based on an ARM A53 processor, engineered for machine control, factory automation and operator interfaces. It features a true-flat glass front, fanless cooling, low power consumption and Power over Ethernet (PoE) capability. Optional modules include a 2MP front camera and HF RFID reader (13.56 MHz).

Key Features

• 7" 1024 x 600 P-CAP multi-touch display
• Fanless design and ultra-low power consumption
• Power over Ethernet (IEEE 802.3at PD, 25 W)
• Front protection IP65
• Optional 2MP front camera and HF RFID reader
• Android (default) or optional Linux operating systems
• Panel mount and VESA mount, metal housing

Display

• Size: 7.0 inches
• Touch / Glass: Projected Capacitive Multi-Touch (4-point)
• Resolution: 1024 x 600
• Brightness: 1000 nits
• Contrast Ratio: 700:1
• Active Area: 153.6 x 90 mm; Viewing Angles: 75,75,75,70

System Specification

• Processor: ARM A53 (Quad Core 2.0 GHz)
• Memory: 4 GB LPDDR4
• Storage: 32 GB eMMC onboard
• OS: Android 11 (default, upgradable to Android 13); optional Linux Yocto or Ubuntu Server
• Optional WLAN and Bluetooth

Mechanical

• Dimensions: 189.4 x 145.4 x 40 mm; Cut-out: 175.5 x 131.5 mm
• Weight: 1.0 kg
• Mounting: Panel mount and VESA mount
• Enclosure: Metal housing

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C; Storage: -20°C to 60°C
• Shock / Vibration: MIL-STD-810H
• Front IP rating: IP65

Certification

• CE
• FCC

IO Ports

• USB: 2 x USB 2.0 Type A; 1 x Micro USB 2.0 OTG
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 1 x 10/100/1000 Mbps
• Video: 1 x Micro HDMI (optional)
• Audio: 1 x Speaker; SD: 1 x Micro SD (max 32 GB)

Power

• Power input: 12 V DC via terminal block
• Adapter: 12 V 50 W (accessory)
• PoE (PD): IEEE 802.3at (25 W)

Camera

• Front camera: 2 MP (optional)

Accessories

• 100 ~ 240 V AC to DC adapter; power cord
• Terminal block to 2.5Ø female adapter cable; open wire cable with terminal block
• VESA screws

Technical specifications

• Model: W07IM3S-PCO1-POE
• Brand: Winmate
• Display Size / Resolution / Touch: 7.0" / 1024 x 600 / P-CAP
• Brightness: 1000 nits; Contrast: 700:1
• Processor / Memory / Storage: ARM A53 Quad Core 2.0 GHz / 4 GB LPDDR4 / 32 GB eMMC
• Mounting & Housing: Panel & VESA mount; metal housing; fanless
• Operating conditions & certs: 0°C–50°C; front IP65; MIL-STD-810H; CE, FCC
• I/O & Power: USB x3, RS232/422/485, LAN 1GbE, Micro HDMI (opt), 12 V DC and PoE PD (25 W)
