Multitouch screen panel PC W07IQ3S-PCT1AC-POE

PCAP capacitive touch screen7"1024 x 600

Overview

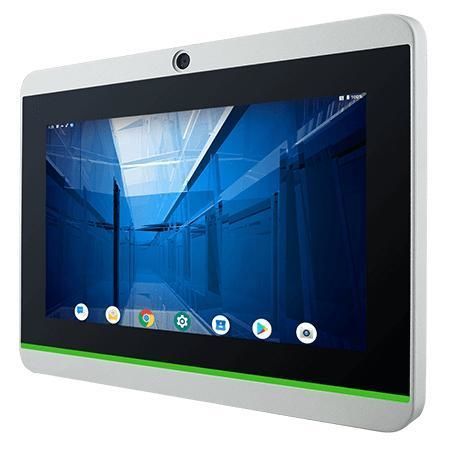

The Winmate W07FA3S-PCT1AC-POE is a 7-inch industrial HMI panel PC of the S series (NXP i.MX6) designed for machine control, factory automation and operator interfaces. It features a projected capacitive multi-touch display, fanless low-power design, integrated RGB LED light bar and PoE power support, with optional hardware modules (HF RFID, front camera) for access control, room booking terminals and status indication.

Key features

• 7.0" projected capacitive (PCAP) multi-touch display, 1024 x 600 resolution
• Fanless design with ultra-low power consumption
• Built-in RGB LED light bar for status indication
• Power over Ethernet (PoE) support (IEEE 802.3at, PD)
• Optional 2 MP front camera
• Optional HF RFID reader (13.56 MHz)
• Slim, sealed front design (front IP65) suitable for room booking and access control terminals

System and display

• Display size: 7.0 inches
• Touch / glass: Projected Capacitive Multi Touch Screen (PCAP)
• Resolution: 1024 x 600
• Panel brightness: 320 nits
• Contrast ratio: 1000:1
• Viewing angles: 75, 75, 75, 70
• Active area: 153.6 x 90 mm
• Processor: NXP i.MX6 Dual Core 1.0 GHz
• Memory: 1 GB (standard), 2 GB (option)
• Storage: eMMC 16 GB (standard), eMMC 32 GB (option)
• Optional OS: Ubuntu 18.04, Android 6.0, Debian 7.0, Linux 4.1.15 QT 5.5
• Optional WLAN / Bluetooth support

Dimensions & mechanical

• Dimensions (W x H x D): 189.4 x 145.4 x 39.8 mm
• Cut-out: 175.5 x 131.5 mm
• Weight: 1.0 kg
• Default mounting: wall mount; VESA mount optional
• Enclosure: metal housing
• Cooling: fanless design

Environment & protection

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Front protection: IP65

Certifications

• CE
• FCC

Connectivity & I/O

• USB: 1 x Console (Mini USB), 1 x USB OTG, 1 x USB 2.0 Type-A
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 1 x RJ45 with PoE (PD, IEEE 802.3at)
• Video: 1 x Micro HDMI (optional)
• Audio: 1 x Speaker
• Card reader: 1 x Micro SD slot
• Expansion: 1 x mPCIe slot (half-size for Wi‑Fi)
• CANBUS: 1 x CANBUS D-sub9
• Power input: 1 x 12V DC, 2-pin terminal block

Power & accessories

• Power input: 12V DC via terminal block
• Adapter: 12V 50W (included or accessory)
• PoE: PoE PD compliant with IEEE 802.3at (25 W)
• Included accessories: 100~240V AC to DC adapter, power cord, terminal block to 2.5Ø female adapter, open wire cable with terminal block connector, VESA screws, driver CD and manual
• Optional accessories: VESA desk stand, front side wall mount kit, VESA bracket mounting kit

Technical specifications

• Model: W07FA3S-PCT1AC-POE
• Brand: Winmate
• Display: 7.0" PCAP, 1024 x 600, active area 153.6 x 90 mm
• Brightness / Contrast / Viewing angles: 320 nits / 1000:1 / 75,75,75,70
• Processor: NXP i.MX6 Dual Core 1.0 GHz
• Memory: 1 GB (standard) / 2 GB (optional)
• Storage: eMMC 16 GB (standard) / 32 GB (optional)
• OS options: Ubuntu 18.04, Android 6.0, Debian 7.0, Linux QT (options)
• Interfaces: USB Mini/OTG/Type-A, RS232/422/485, RJ45 PoE, Micro HDMI (opt.), Micro SD, mPCIe, CANBUS D-sub9, Speaker
• Power: 12V DC (terminal block) and PoE PD IEEE 802.3at (25 W)
• Dimensions / Weight: 189.4 x 145.4 x 39.8 mm / 1.0 kg
• Mounting: Wall mount (default), VESA optional
• Protection: Front IP65
• Options: 2 MP front camera, HF RFID 13.56 MHz, WLAN/BT (optional)
• Certifications: CE, FCC
