PCAP capacitive touch screen panel PC R12IQ3S-PCM2AC-POE

TFT LCDmultitouch screen12.1"

Overview

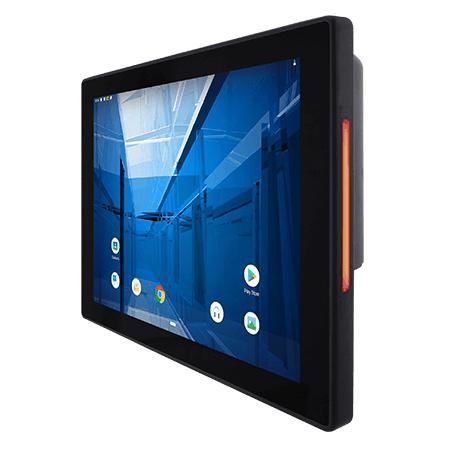

The Winmate R12IQ3S-PCM2AC-POE is a 12.1-inch HMI panel PC powered by Qualcomm Snapdragon 660 S-series, designed for machine control, factory automation and operator HMI. It offers a 1024 x 768 TFT display with projected capacitive multi-touch, fanless cooling, ultralow power consumption, Power over Ethernet (PoE) support, optional HF RFID reader, built-in RGB LED light bars and front IP65 protection.

Key Features

• 12.1" 1024 x 768 TFT with Projected Capacitive (PCAP) multi-touch
• Fanless cooling and ultralow power consumption
• Power over Ethernet (PoE) support (IEEE 802.3at PD, 25 W)
• Optional HF RFID Reader (13.56 MHz)
• Slim S-series design with true flat front for easy cleaning
• Front IP65 water and dust protection
• Built-in RGB LED status light bars on both sides

Design & Function

• PoE enables data and power over a single cable to simplify installation and centralize power management for access control and automation
• S-series slim profile (~35% thinner than traditional panel PCs) reduces bezel volume and eases maintenance
• P-Cap touch with glass cover lens, scratch resistance and 4-point multi-touch for finger operation
• Programmable RGB light bars for remote status indication and optional HF RFID/NFC for limited access control
• Sealed front panel (IP65) protects against dust and water splashes

Certifications

• CE
• FCC

Specifications

• Display Size: 12.1 inches
• Touch / Glass: Projected Capacitive Multi-Touch Screen
• Resolution: 1024 x 768
• Panel Brightness: 500 nits
• Contrast Ratio: 1000:1
• View Angles: 89/89/89/89
• Active Area: 245.76 x 184.32 mm
• Processor: Qualcomm Snapdragon 660 (Octa-Core 2.2 GHz)
• Memory: 3 GB LPDDR4
• Storage: eMMC onboard 32 GB
• Operating System: Android 9.0
• WLAN / Bluetooth: optional
• RFID: HF 13.56 MHz (optional)
• Light Bar: Built-in RGB LED status light bars on both sides
• Dimensions: 296 x 227 x 46 mm; Cut out: 282 x 207 mm
• Weight: 3.4 kg
• Mounting: Panel mount / VESA mount supported
• Enclosure: Metal housing (aluminum)
• Cooling: Fanless design
• Operating Humidity: 10% to 90% RH non-condensing
• Operating Temperature: 0°C to 50°C; Storage Temperature: -20°C to 60°C
• Shock / Vibration: MIL-STD-810G compliant
• IP Rating: Front IP65
• IO Ports: 2 x USB 2.0 (Type A), 1 x USB 3.0 (Type-C)
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 1 x LAN PoE at/af (USB to LAN AX88178A noted)
• Video: 1 x Micro HDMI (optional)
• Audio: 2 x Speakers
• SD Card Slot: Micro SD
• Accessories: 100-240V AC-DC adapter, power cord, terminal block adapters, VESA screws
• Power: 12V DC via terminal block (default); optional 9-36V; Adapter: 12V 50W; PoE PD follows IEEE 802.3at (25 W)
