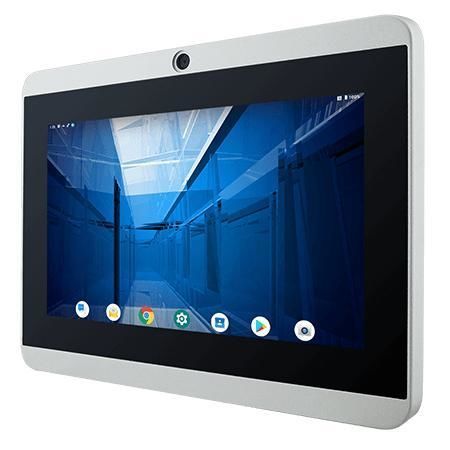

Multitouch screen panel PC W07IQ3S-PCO1-POE

PCAP capacitive touch screen1000 nits7"

Overview The W07IQ3S-PCO1-POE is a 7-inch S Series HMI Panel PC powered by Qualcomm Snapdragon 660, engineered for machine control, factory automation and operator HMI. It features a 7-inch 1024 x 600 P-Cap multi-touch display, fanless cooling, ultra-low power consumption, Power over Ethernet (PoE) support, optional 2MP front camera and optional HF RFID reader, with front IP65 protection and a slim design suitable for room booking, access control and room information applications.

Key Features

• 7-inch 1024 x 600 resolution with Projected Capacitive Multi-Touch (P-CAP)
• Fanless cooling system and ultra-low power consumption
• Supports Power over Ethernet (PoE) — IEEE 802.3at (PD up to 25 W)
• Optional 2 MP front camera
• Optional HF RFID reader (13.56 MHz)
• Front IP65 water and dust protection
• Slim, flat design for easy cleaning and integration

Power over Ethernet Power over Ethernet combines data and power delivery in a single cable, reducing cabling and enabling centralized power management for access control and industrial automation deployments.

Stylish Design The S-series HMI is approximately 35% thinner than traditional panel PCs and features a true flat surface for easier cleaning and a modern look suitable for both public and industrial environments.

P-Cap Touch Projected capacitive touch supports 4-point multi-touch with a glass cover lens that resists scratches and enhances touch responsiveness for operator interaction.

Front IP65 Protection The front panel is sealed to IP65 standard, providing resistance to dust and water splashes for reliable operation in harsh or public environments.

Certifications CE, FCC

Technical specifications

• Model: W07IQ3S-PCO1-POE
• Brand: Winmate
• Display size: 7.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (P-CAP), 4-point multi-touch
• Resolution: 1024 x 600
• Panel brightness: 1000 nits
• Contrast ratio: 700:1
• View angles: 75 / 75 / 75 / 70
• Active area: 153.6 x 90 mm
• Processor: Qualcomm Snapdragon 660 (Octa-Core 2.2 GHz)
• Memory: 3 GB LPDDR4
• Storage: eMMC onboard 32 GB
• Operating system: Android 9.0
• WLAN: optional support
• Bluetooth: optional support
• RFID: HF RFID reader 13.56 MHz (optional)
• Dimension: 189.4 x 145.4 x 36.1 mm
• Cut out: 175.5 x 131.5 mm
• Weight: 1.0 kg
• Mounting: Panel mount; VESA mount
• Enclosure: Metal housing
• Cooling system: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0 °C to 50 °C
• Storage temperature: -20 °C to 60 °C
• Shock: MIL-STD-810G Method 516.6 Procedure I
• Vibration: MIL-STD-810G Method 514.6 Procedure I
• IP rating: Front IP65
• IO Ports: 2 x USB 2.0 (Type A); 1 x USB 3.0 (Type-C)
• Serial port: 1 x RS232/422/485 (default RS232)
• LAN: 1 x LAN (PoE at/af)
• Video: 1 x Micro HDMI (optional)
• Audio: 1 x Speaker
• SD card slot: 1 x Micro SD card slot
• Power rating: 12V DC with terminal block
• Adapter: 12V 50W
• PoE (PD): follows IEEE 802.3at (25 W)
• Camera: Front 2 MP camera (optional)
• Accessories: 100~240V AC to DC adapter; power cord; terminal block to 2.5Ø female adapter cable; open wire cable with terminal block connector; VESA screws
