Multitouch screen panel PC R12MG3S-PCM2AC-POE
PCAP capacitive touch screen12.1"1024 x 768

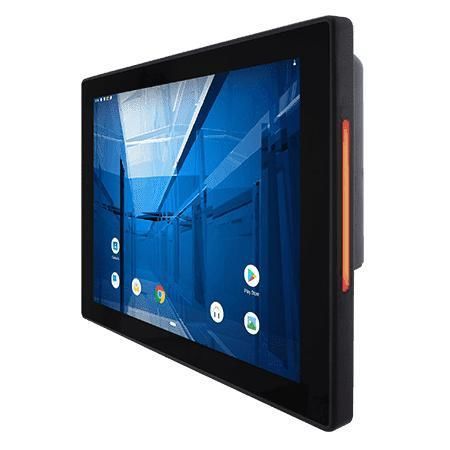

Multitouch screen panel PC - R12MG3S-PCM2AC-POE - Winmate, Inc. - PCAP capacitive touch screen / 12.1" / 1024 x 768
Multitouch screen panel PC - R12MG3S-PCM2AC-POE - Winmate, Inc. - PCAP capacitive touch screen / 12.1" / 1024 x 768
Multitouch screen panel PC - R12MG3S-PCM2AC-POE - Winmate, Inc. - PCAP capacitive touch screen / 12.1" / 1024 x 768 - image - 2
Multitouch screen panel PC - R12MG3S-PCM2AC-POE - Winmate, Inc. - PCAP capacitive touch screen / 12.1" / 1024 x 768 - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP capacitive touch screen, multitouch screen
Display size
12.1"
Resolution
1024 x 768
Processor
ARM® Cortex®-A55 Quad-core, ARM Cortex-A78
Operating system
Linux® Ubuntu™, Linux® Yocto, Android
Construction
in metal housing
Mounting
VESA mounting
Applications
industrial
Protection level
IP65
Integrated peripheral
with RFID reader, with webcam
Other characteristics
HMI, Ethernet, USB 2.0, PoE, USB Type-C
Memory size

4 GB

Description

Overview
Winmate R12MG3S-PCM2AC-POE is a 12.1" S Series HMI Panel PC with ARM A78 + A55 processors, designed for machine control, factory automation and operator HMI applications. It combines a P‑CAP multi‑touch display, fanless thermal design and Power over Ethernet (PoE) support to simplify integration in industrial environments.

Key Features
  • 12.1" 1024 x 768 P‑CAP projected capacitive multi‑touch
  • Built‑in RGB LED status light bar (both sides)
  • PoE (PD) support per IEEE 802.3at (25 W)
  • Optional 2 MP front camera
  • Optional HF RFID reader (13.56 MHz)
  • Front panel IP65 protection
  • Fanless cooling with heat sinks and vapor chamber
  • Android 13 default; Linux Yocto / Ubuntu optional

Interaction & Design
The P‑CAP touchscreen delivers responsive 4‑point multitouch for operator interfaces. Fanless construction and thermal management ensure silent, low‑maintenance operation. The programmable RGB light bar provides visual status feedback for quick on‑site indication. Optional RFID/NFC and camera modules expand use cases for access control, room booking and identification.

Certifications
CE, FCC

Accessories (included / available)
  • 100–240V AC to DC adapter
  • Power cord
  • Terminal block to 2.5Ø female adapter cable
  • Open wire cable with terminal block connector
  • VESA screws

Technical specifications
  • Display: 12.1 inches, 1024 x 768, 500 nits, 1000:1 contrast
  • Active area: 245.76 x 184.32 mm
  • Processor: ARM 2 x A78 2.0 GHz + 4 x A55 2.0 GHz
  • Memory: 4 GB LPDDR4
  • Storage: Onboard 32 GB
  • OS: Android 13 (default); Linux Yocto 5.15.47 w/ Qt 5.15 (optional); Ubuntu 22.04 (optional)
  • Connectivity: 1 x LAN 10/100/1000, optional WLAN/BT, PoE (PD)
  • IO: 2 x USB 2.0 Type A; 1 x USB 2.0 Type C (OTG); 1 x RS232/422/485 (default RS232); 1 x Micro HDMI (optional)
  • Audio: 2 x speaker; SD: 1 x Micro SD slot
  • Dimensions / Cut out: 296 x 227 x 46 mm / 282 x 207 mm
  • Weight: 3.4 kg; Mounting: VESA
  • Enclosure: Metal housing; Operating: 0°C to 50°C; Storage: -20°C to 60°C; Humidity: 10%–90% RH non‑condensing
  • Shock & Vibration: MIL‑STD‑810H (516.8 / 514.8)
  • Power: 12V DC terminal block (default); optional 9–36V; Adapter 12V 50W; PoE PD IEEE 802.3at (25 W)
