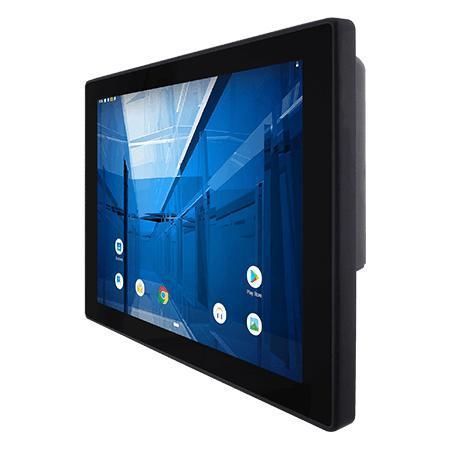

Multitouch screen panel PC R12IQ3S-PCM2-POE

touch screenTFT LCDPCAP capacitive touch screen

Overview

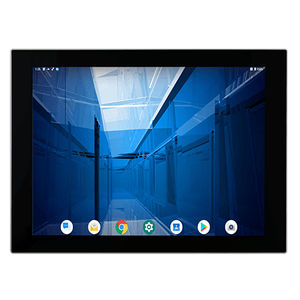

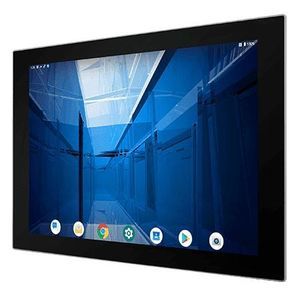

Winmate R12IQ3S-PCM2-POE is a 12.1-inch HMI panel PC powered by Qualcomm® Snapdragon™ 660, designed for machine control, factory automation and operator interfaces. It features fanless cooling, low power consumption, PoE support and a front panel rated IP65 for reliable operation in industrial and commercial environments.

Key Features

• 12.1-inch 1024 x 768 TFT LCD with Projected Capacitive Multi-Touch (PCAP)
• Fanless cooling and ultra-low power consumption
• Power over Ethernet (PoE) support (IEEE 802.3at, 25 W)
• Optional HF RFID reader (13.56 MHz)
• Slim, flat design suitable for room booking, access control and information displays
• Front panel protection IP65 (water and dust resistant)

Power over Ethernet (PoE)
PoE simplifies installation by delivering data and power over a single cable, reducing cable count and enabling centralized power management—ideal for access control, building automation and distributed HMI deployments.

Design and Maintenance
The S-series design is significantly thinner than many traditional panel PCs, providing a flat surface that is easier to clean and integrate into modern interiors and kiosks.

P‑Cap Touch
The projected capacitive touch glass is scratch resistant, supports multi-touch and delivers accurate finger control for operator interfaces and public-facing displays.

Front IP65 Protection
The front bezel is sealed to IP65 to protect against dust ingress and water splashes, enabling reliable operation in harsher or exposed locations.

Certifications

• CE
• FCC

Technical specifications

• Display: 12.1 inches, 1024 x 768, 500 nits, 1000:1
• Touch / Glass: Projected Capacitive Multi Touch (P‑Cap), active area 245.76 x 184.32 mm
• Processor: Qualcomm® Snapdragon™ 660 (Octa‑Core 2.2 GHz)
• Memory: 3 GB LPDDR4
• Storage: eMMC onboard 32 GB
• OS: Android 9.0
• Connectivity: LAN PoE (at/af), optional WLAN, optional Bluetooth
• RFID: HF 13.56 MHz (optional)
• Dimensions: 296 x 227 x 46 mm; Cut out: 282 x 207 mm; Weight: 3.4 kg
• Mounting: Panel mount / VESA mount; Enclosure: Metal housing; Cooling: Fanless
• Environment: Operating 0°C to 50°C; Storage -20°C to 60°C; Humidity 10%–90% RH non‑condensing
• Shock & Vibration: MIL‑STD‑810G (516.6 Proc I, 514.6 Proc I)
• IO: 2 x USB 2.0 Type-A, 1 x USB 3.0 Type-C, 1 x RS232/422/485 (default RS232), 1 x LAN PoE, 1 x Micro HDMI (optional), 2 x Speaker, 1 x Micro SD slot
• Power: 12V DC terminal block (default), 9–36V optional; Adapter 12V 50W; PoE PD IEEE 802.3at (25 W)
• Accessories: 100–240V AC to DC adapter, power cord, terminal block adapter cable, open wire cable with terminal block connector, VESA screws
