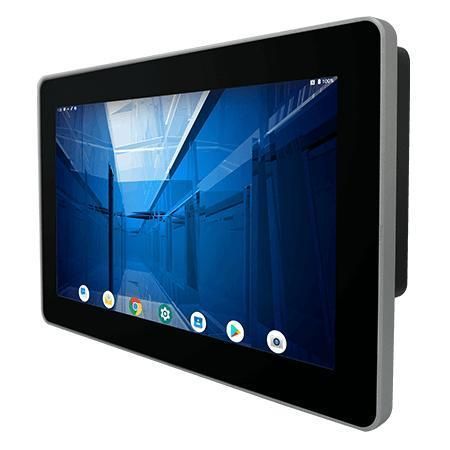

Multitouch screen panel PC W10IQ3S-PCH2-POE

touch screencapacitive touch screenPCAP capacitive touch screen

Product Overview
Winmate W10IQ3S-PCH2-POE is a 10.1-inch S Series HMI Panel PC powered by Qualcomm® Snapdragon™ 660, designed for machine control, factory automation and operator HMI. It combines a slim metal enclosure, front IP65 protection, fanless cooling and Power over Ethernet (PoE) to simplify installations in industrial and commercial environments.

Key features

• 10.1" 1280 x 800 display with Projected Capacitive multi-touch (4-point)
• Fanless design and low power consumption
• Power over Ethernet (PoE) support (PD, IEEE 802.3at up to 25 W)
• Optional 2 MP front camera and HF RFID reader (13.56 MHz)
• Front IP65 rating for dust and splash protection
• Slim profile and flat front for easy cleaning and integration

System & Connectivity

• Processor: Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz)
• Memory: 3 GB LPDDR4; Storage: 32 GB eMMC onboard
• Operating system: Android 9.0
• Optional: WLAN and Bluetooth modules
• Optional HF RFID reader (13.56 MHz)

IO Ports

• USB: 2 x USB 2.0 (Type A), 1 x USB 3.0 (Type-C)
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 1 x LAN PoE (at/af)
• Video: 1 x Micro HDMI (optional)
• Audio: 1 x speaker
• Storage: 1 x Micro SD card slot

Mechanical

• Dimensions: 264.57 x 173.29 x 35.7 mm; Cut out: 250 x 159 mm
• Weight: 1.2 kg
• Mounting: Panel mount and VESA mount options
• Enclosure: Metal housing

Environment & Ruggedness

• Operating temperature: 0°C to 50°C; Storage: -20°C to 60°C
• Operating humidity: 10% to 90% RH, non-condensing
• Shock & vibration: MIL-STD-810G (specified procedures)
• Front IP rating: IP65

Power & Accessories

• Power input: 12 V DC via terminal block (default); optional 9–36 V
• Adapter: 12 V 50 W; PoE PD follows IEEE 802.3at (25 W)
• Accessories included/available: 100–240 V AC/DC adapter, power cord, terminal block adapter cable, open-wire cable with terminal connector, VESA screws

Camera

• Optional front camera: 2 MP

Certifications

• CE
• FCC

Technical specifications

• Model: W10IQ3S-PCH2-POE
• Manufacturer: Winmate
• Display: 10.1" 1280 x 800, P-CAP multi-touch, 350 nits (1000 nits optional), contrast 800:1
• Processor: Qualcomm® Snapdragon™ 660; Memory: 3 GB LPDDR4; Storage: 32 GB eMMC
• OS: Android 9.0
• IO: 2x USB2.0, 1x USB3.0 Type-C, 1x RS232/422/485, 1x LAN PoE, 1x Micro HDMI (opt.), 1x speaker, 1x Micro SD slot
• Mechanical: 264.57 x 173.29 x 35.7 mm; Cut out 250 x 159 mm; weight 1.2 kg; metal housing
• Environmental: 0°C to 50°C operating; -20°C to 60°C storage; 10%–90% RH non-condensing; Front IP65
• Optional modules: 2 MP front camera, HF RFID 13.56 MHz, WLAN/BT
• Certifications: CE, FCC
