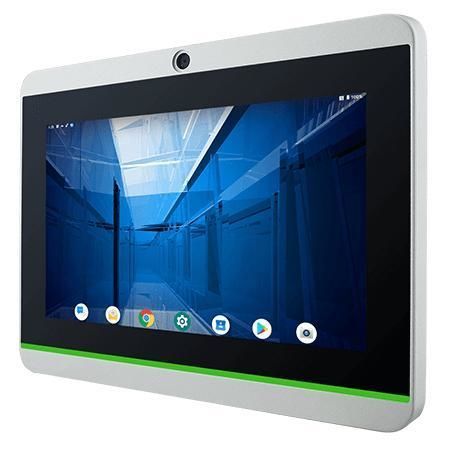

Multitouch screen panel PC W07IQ3S-PCO1AC-POE

PCAP capacitive touch screen1000 nits7"

Overview
Winmate W07IQ3S-PCO1AC-POE is a 7-inch S-Series HMI Panel PC powered by Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz). Designed for machine control, factory automation and operator HMI, it targets industrial, OEM and system integrator applications requiring long lifecycle availability, fanless operation and simplified cabling via PoE.

Key Features

• 7" 1024 x 600 display with Projected Capacitive Multi-Touch (P-CAP)
• Fanless thermal design and ultra-low power consumption
• Power over Ethernet (PoE) support (IEEE 802.3at PD, 25 W)
• Optional 2 MP front camera
• Optional HF RFID reader (13.56 MHz)
• Front IP65 protection (water and dust splash)
• Built-in RGB LED status light bar (programmable)

Product Highlights & Use Cases
The S-Series HMI is approximately 35% thinner than traditional panel PCs, featuring a flat P-Cap glass surface for easy cleaning and 4-point multi-touch operation. PoE enables data and power over a single cable for simplified installations and centralized power management. The programmable RGB light bar provides remote status indication. Typical applications include access control, industrial automation HMI, meeting-room terminals, building management, and information kiosks where simplified cabling, front IP65 protection and fanless operation are required.

Certifications

• CE
• FCC

Front Protection
Front IP65 rated for protection against dust and water splash; suitable for environments where front cleaning and splash resistance are needed.

Additional Notes
Optional modules: WLAN and Bluetooth, HF RFID reader, Micro HDMI video output and 2 MP camera. Multiple mounting options: panel mount and VESA mount. Metal enclosure with fanless thermal design for silent, reliable operation.

Technical specifications

• Display — Size: 7.0 inches
• Display — Touch / Glass: Projected Capacitive Multi Touch Screen
• Display — Resolution: 1024 x 600
• Display — Panel Brightness: 1000 nits
• Display — Contrast Ratio: 700:1
• Display — View Angles: 75, 75, 75, 70
• Display — Active Area: 153.6 x 90 mm
• Processor: Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz)
• Memory: 3 GB LPDDR4
• Storage: eMMC onboard 32 GB
• Operating System: Android 9.0
• WLAN: Support (Optional)
• Bluetooth: Support (Optional)
• RFID: HF RFID Reader 13.56 MHz (Optional)
• Light Bar: Built-in RGB LED status light bar on both sides
• Mechanical — Dimension: 189.4 x 145.4 x 36.1 mm
• Mechanical — Cut out: 175.5 x 131.5 mm
• Mechanical — Weight: 1.0 kg
• Mounting: Panel mount; VESA mount
• Enclosure: Metal (Aluminum) housing
• Cooling System: Fanless design
• Environment — Operating Humidity: 10% to 90% RH, non-condensing
• Environment — Operating Temperature: 0°C to 50°C
• Environment — Storage Temperature: -20°C to 60°C
• Shock: MIL-STD-810G Method 516.6 Procedure I
• Vibration: MIL-STD-810G Method 514.6 Procedure I
• IP Rating: Front IP65
• Certification: CE, FCC
• IO Ports — USB: 2 x USB 2.0 (Type A), 1 x USB 3.0 (Type-C)
• IO Ports — Serial: 1 x RS232/422/485 (default RS232)
• IO Ports — LAN: 1 x LAN (PoE, supports IEEE 802.3at PD)
• IO Ports — Video: 1 x Micro HDMI (Optional)
• IO Ports — Audio: 1 x Speaker
• IO Ports — SD Card Slot: 1 x Micro SD card slot
• Accessory: 100~240V AC to DC Adapter; Power Cord; Terminal Block to 2.5Ø Female Adapter Cable; Open Wire Cable with terminal block connector; VESA screws
• Power — Power Rating: 12V DC with terminal block
• Power — Adapter: 12V 50W
• Power — PoE: PoE (PD) follows IEEE 802.3at (25 W)
• Camera: Front 2 MP camera (Optional)
