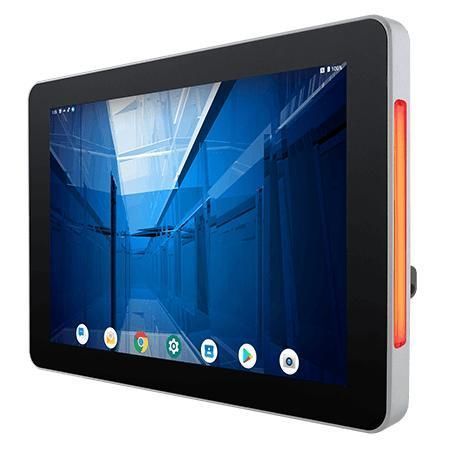

Multitouch screen panel PC W10IQ3S-PCH2AC-POE

touch screenPCAP capacitive touch screen10.1"

Overview
Winmate W10IQ3S-PCH2AC-POE is a 10.1-inch S-series HMI Panel PC powered by Qualcomm® Snapdragon™ 660, engineered for machine control, factory automation and operator HMI tasks. It features a fanless design, low power consumption, Power over Ethernet (PoE) support, optional 2 MP front camera and HF RFID, a built-in RGB LED light bar and front IP65 protection suited to industrial and access-control installations.

Key features

• 10.1" 1280 x 800 display with Projected Capacitive Multi-Touch (P-CAP), 4-point touch
• Fanless cooling and ultralow power consumption
• Power over Ethernet (PoE) support (IEEE 802.3at PD, 25 W)
• Optional 2 MP front camera
• Optional HF RFID reader (13.56 MHz)
• Built-in RGB LED light bar status indicator (both sides)
• Front IP65 water and dust protection
• Panel mount and VESA mount support

PoE and power
PoE (PD) enables data and power over a single cable, simplifying installation and centralized power management for access control, room booking and distributed HMI points. Default power input is 12 V DC via terminal block; optional 9–36 V support and 12 V/50 W adapter available.

Design & operation
Thin S-series design with flat front glass for easy cleaning and integration. The RGB light bar offers programmable multi-color status indication (red, green, blue, orange). HF RFID/NFC enables limited access-control functions. Fanless metal housing improves reliability in industrial environments.

Certifications
CE, FCC

Specifications

• Model: W10IQ3S-PCH2AC-POE
• Manufacturer: Winmate
• Display: 10.1", 1280 x 800, 350 nits (1000 nits optional), 800:1 contrast
• Touch: Projected Capacitive Multi-Touch (4-point)
• Processor: Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz)
• Memory: 3 GB LPDDR4
• Storage: 32 GB eMMC onboard
• OS: Android 9.0
• Dimensions: 264.57 x 173.29 x 35.7 mm; Cut out: 250 x 159 mm; Weight: 1.2 kg
• IO: 2× USB2.0 (Type A), 1× USB3.0 (Type-C), 1× RS232/422/485, 1× LAN PoE at/af, 1× Micro HDMI (optional), 1× Speaker, 1× Micro SD slot
• Environment: Operating 0°C to 50°C, 10%–90% RH (non-condensing)
• Shock/Vibration: MIL-STD-810G
• Front IP rating: IP65
• Accessories: 100–240V AC to DC adapter, power cord, terminal block adapters, VESA screws
