Multi-touch screen panel PC W10IM3S-PCH2-POE

PCAP capacitive touch screen10.1"1280 x 800

Overview

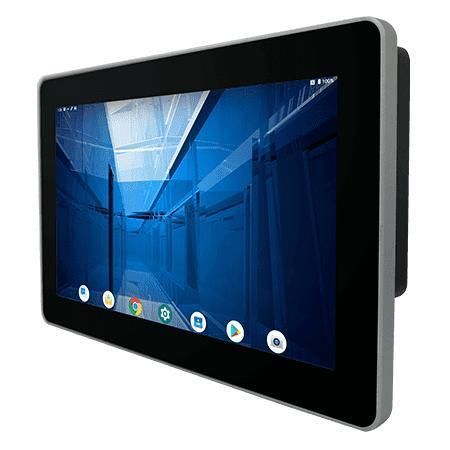

Winmate W10IM3S-PCH2-POE is a 10.1-inch HMI Panel PC from the S Series featuring an ARM A53 quad-core processor (2.0 GHz). Engineered for machine control, factory automation and operator HMI applications, it provides a fanless, ultra-low-power design, front-side IP65 protection and Power over Ethernet (PoE) power delivery. Optional modules include a 2 MP front camera, HF RFID reader (13.56 MHz) and wireless connectivity. The device supports Android (default) and optional Linux distributions.

Key Features

• 10.1" 1280 x 800 P-CAP multi-touch display
• Fanless cooling and ultralow power consumption
• Power over Ethernet (PoE) PD support (IEEE 802.3at, up to 25 W)
• Optional 2 MP front camera and HF RFID reader (13.56 MHz)
• Front IP65 protection for water and dust resistance
• Supports Android or Linux operating systems

Product Details
Display

• Size: 10.1 inches
• Touch/Glass: Projected Capacitive Multi-Touch (4-point)
• Resolution: 1280 x 800
• Brightness: 350 nits (1000 nits optional)
• Contrast Ratio: 800:1
• Viewing Angles: 85/85/85/85
• Active Area: 216.96 x 135.6 mm

System Specification

• Processor: ARM A53 (Quad Core 2.0 GHz)
• Memory: 4 GB LPDDR4
• Storage: 32 GB eMMC onboard
• Operating System: Android 11 (upgradeable to Android 13) by default; optional: Linux Yocto 5.15.47 (QT 5.15) or Ubuntu Server 22.04
• Optional WLAN and Bluetooth

Mechanical

• Dimensions: 264 x 173 x 36 mm
• Cut out: 250 x 159 mm
• Weight: 1.2 kg
• Mounting: Panel mount; VESA mount
• Enclosure: Plastic front bezel with metal back cover

Environment

• Operating Humidity: 10%–90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Shock/Vibration: MIL-STD-810H compliant
• Front IP Rating: IP65

Certification

• CE
• FCC

IO Ports

• USB: 2 x USB 2.0 Type A; 1 x Micro USB 2.0 OTG
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 1 x Gigabit LAN (10/100/1000 Mbps)
• Video: 1 x Micro HDMI output (optional)
• Audio: 1 x Speaker
• SD Card Slot: 1 x Micro SD (max 32 GB)

Accessory

• 100~240V AC to DC adapter
• Power cord
• Terminal block to 2.5Ø female adapter cable
• Open wire cable with terminal block connector
• VESA screws

Power

• Power rating: 12V DC via terminal block (default); optional 9~36V
• Adapter: 12V 50W
• PoE: PoE (PD) follows IEEE 802.3at (25 W)

Camera

• Front camera: 2 MP (optional)

Technical Specifications

• Model: W10IM3S-PCH2-POE
• Display: 10.1" 1280 x 800 P-CAP, 350 nits (1000 nits optional)
• Processor: ARM A53 (Quad Core 2.0 GHz)
• Memory: 4 GB LPDDR4
• Storage: 32 GB eMMC onboard
• OS: Android 11 default (upgradeable to Android 13); optional Linux Yocto or Ubuntu Server
• Network: 1 x Gigabit LAN; PoE PD IEEE 802.3at (25 W)
• Optional I/O and modules: Micro HDMI, HF RFID 13.56 MHz, 2 MP front camera, WLAN, Bluetooth
• Front Protection: IP65
• Dimensions / Weight: 264 x 173 x 36 mm / 1.2 kg
• Mounting: Panel / VESA
• Operating Temp / Humidity: 0°C to 50°C; 10%–90% RH non-condensing
• Shock / Vibration: MIL-STD-810H compliant
• Certifications: CE, FCC
