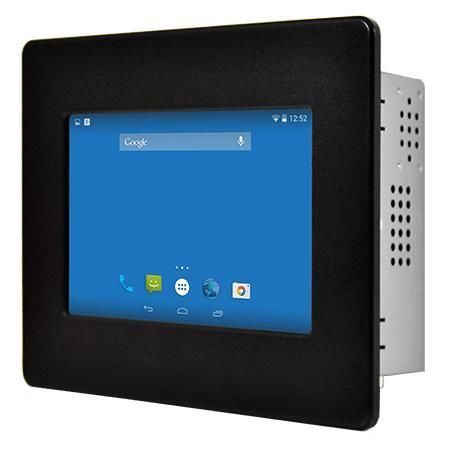

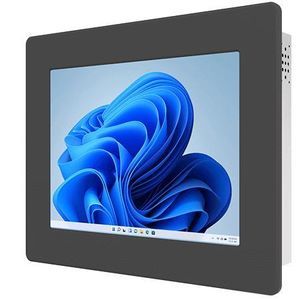

Resistive touch screen panel PC R05FA3S-IPD1

touch screenTFT LCD5.7"

Overview

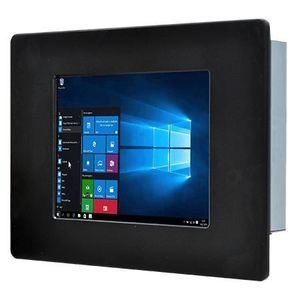

Winmate R05FA3S-IPD1 is a 5.7" front IP65 touchscreen Panel PC based on the NXP i.MX6 platform, designed for machine control, factory automation and operator HMI applications. The device provides front IP65 sealing for wet and dusty environments, fanless ultra-low power operation, and a compact form factor for panel or VESA installation, addressing needs of industrial buyers, OEMs and system integrators for stable integration and long lifecycle availability.

Key Features

• 5.7" 640 x 480 TFT LCD with resistive touch (option for protection glass); front IP65 rated
• NXP i.MX6 Dual Core 1.0 GHz (Quad Core optional)
• Onboard LPDDR3 1 GB (2 GB optional) and eMMC 16 GB (32 GB optional)
• Interfaces: 1 x USB 2.0 Type‑A, 1 x USB OTG, 1 x Mini USB (console), 1 x RS232/422/485, 1 x LAN RJ45 with PoE (PD, IEEE 802.3at), 1 x Micro SD slot, 1 x Micro HDMI (optional)
• PoE support (optional); fanless thermal design
• Expansion: 1 x mPCIe slot for Wi‑Fi module; CANBUS (D‑sub9)

Product Highlights

• Front IP65 waterproof/dustproof bezel with rear O‑ring sealing for secure panel mounting in harsh environments
• Flexible surface options for resistive touch operation (gloved use) or protection glass when touch is not required
• Dual display output support (VGA + Micro HDMI optional) for monitoring or kiosk setups
• Compact mechanical size (188 x 148 x 59 mm) with 162 x 118 mm cut-out for embedded installations
• Suitable for indoor/outdoor kiosks, factory floors, parking or service stations when correctly installed

Certifications

• CE
• FCC

Technical specifications

• Model: R05FA3S-IPD1
• Processor: NXP i.MX6 Dual Core 1.0 GHz (Quad Core optional)
• Memory: 1 GB LPDDR3 (default); 2 GB optional
• Storage: eMMC 16 GB (default); 32 GB optional; Micro SD slot
• Operating System: Optional Linux Ubuntu 18.04, Android 6.0, Debian 7.0, Linux 4.1.15 QT 5.5
• Display: 5.7" 640 x 480, 900 nits, 300:1 contrast, active area 115.2 x 86.4 mm
• Dimensions: 188 x 148 x 59 mm; Cut out: 162 x 118 mm; Weight: 1.0 kg
• Mounting: Panel mount; VESA mount
• Enclosure: Metal housing; Cooling: Fanless
• Operating: 0°C to 50°C; Storage: -10°C to 60°C; Humidity: 10%–90% RH non‑condensing
• I/O: 1 x Mini USB console; 1 x USB OTG; 1 x USB2.0 Type‑A; 1 x RS232/422/485; 1 x LAN RJ45 with PoE; 1 x Micro HDMI (optional); 2 x Speakers; 1 x Micro SD; 1 x mPCIe; 1 x CANBUS D‑sub9
• Power: 12V DC (2‑pin terminal); Adapter 12V 50W; PoE PD IEEE 802.3at (25W)
• Accessories: AC 100~240V to 12V DC adapter, power cord, VESA screws, mounting clips
