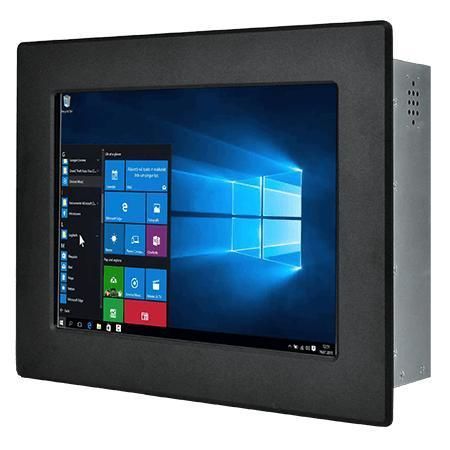

Resistive touch screen panel PC R10IE3S-IPT2

TFT LCD10.4"Intel® Celeron® N6211

Overview
Winmate R10IE3S-IPT2 is a 10.4-inch Intel® Celeron® N6211 Front IP65 Panel PC designed for machine control, factory automation, and operator HMI. It delivers reliable industrial-grade performance, long lifecycle availability, and field-proven durability for wet and dusty environments, outdoor kiosks, and embedded control systems.

Key Features

• 10.4-inch TFT XGA LCD (1024 x 768), 500 nits, 1000:1 contrast
• Intel® Celeron® Elkhart Lake N6211 processor (up to 3.0 GHz)
• 1 x SO-DIMM, up to 16 GB DDR4; default 4 GB, optional 8/16 GB
• 2 x Intel® Ethernet controllers (2 x 2.5 Giga LAN RJ45)
• Supports 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen2x1, 4 x USB 2.0

Product highlights
The Front IP65 Series provides a waterproof front IP65 design for wet and dusty applications while keeping a compact narrow bezel. Options include resistive touch or protection glass (no touch). Signal interfaces include VGA and HDMI for easy integration. The product features a rear O-ring design to seal the front bezel to the customer's fixture for water and dust prevention and supports easy panel or rack installation. When installed correctly in an enclosure, it is suitable for outdoor kiosk applications including parking, gas stations, swimming pools, and SPA kiosks.

Technical specifications

• Display: Size: 10.4 inches; Resolution: 1024 x 768; Brightness: 500 nits; Contrast: 1000:1; View angles: 88/88/88/88; Active area: 210.4 x 157.8 mm; Touch/Glass: Resistive touch (Optional) or protection glass without touch (Optional)
• System: Processor: Intel® Celeron® N6211; Memory: 4GB default (options 8GB/16GB); Storage: 128GB SSD default (optional 256/512GB/1TB/2TB); 1 x SATA III for 2.5" SSD/HDD (Optional); TPM 2.0; OS options: Windows 11 IoT Enterprise, Windows 11 Pro, Windows 10 IoT Enterprise, Linux Ubuntu 22.04 (all optional)
• Mechanical: Dimensions: 284 x 234 x 55 mm; Cut-out: 262 x 199 mm; Weight: 2.4 kg; Mounting: Panel mount (Default), VESA (Optional); Enclosure: Metal housing; Cooling: Fanless design
• Environment: Operating humidity: 10% to 90% RH non-condensing; Operating temp: 0°C to 50°C; Storage temp: -10°C to 60°C; Front IP rating: IP65
• Certifications: CE, FCC
• IO Ports: 2 x USB 3.2 Gen2x1 (Type-A); 4 x USB 2.0; Serial: 1 x RS232/422/485 (Default RS232) + 1 x RS232; LAN: 2 x 2.5 Giga LAN RJ45; Video: 1 x HDMI 2.0 (Optional), VGA; Audio: 2 x Speaker; Expansion: 1 x M.2 2242 B-Key (SATA III SSD), 1 x M.2 2230 E-Key (Wi‑Fi); Indicators: LED power, LED storage; Brightness knob; Power input: 12V DC (2.5φ DC jack)
• Controls & Accessories: Power and Reset buttons; Included/optional accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips; Adapter: 12V 50W
