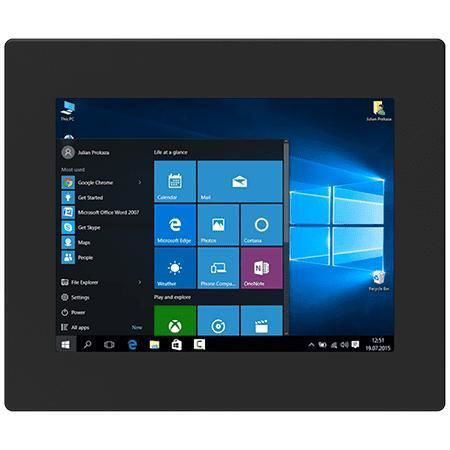

Resistive touch screen panel PC R12IT3S-IPM2

TFT LCD12.1"Intel® Core™ i5-1135G7

Overview
Winmate R12IT3S-IPM2 is a 12.1-inch front IP65 panel PC built for machine control, factory automation and operator HMI. Powered by Intel® Core™ i5-1135G7, the system features fanless cooling, low power consumption, front IP65 protection against water and dust, dual 2.5G Ethernet and modular storage/expansion options to meet industrial integration requirements.

Key features

• 12.1" TFT XGA (1024 x 768) display, 500 nits
• Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz)
• Fanless thermal design and ultra-low power operation
• Front IP65 protection with rear O-ring sealing
• 1 x SO-DIMM DDR4 3200 MHz (up to 32 GB)
• Integrated dual Intel® Ethernet controllers (2 x 2.5G LAN)
• M.2 storage and Wi‑Fi module expansion (M.2 2280 M-Key / M.2 2242 / M.2 2230)

Front IP65 waterproof design
Front bezel sealed with a rubber O-ring provides IP65 protection from the front for wet and dusty environments while preserving a compact narrow-bezel form factor suitable for industrial panels, outdoor kiosks and poolside installations.

Touchscreen and front-surface options
Available with resistive touchscreen or protection glass without touch to match specific operator workflows and environmental constraints.

Connectivity and integration
Onboard VGA and optional HDMI 2.0 output, multiple USB 3.2 ports, serial interfaces and dual gigabit-class LAN provide flexible I/O for embedded controllers, PLCs and peripheral devices.

Installation and maintenance
Panel-mount design (VESA optional). Rear rubber O-ring and mounting clips enable straightforward sealed installation into cabinets or kiosks; easy access to expansion slots simplifies field upgrades.

Applications
Intended for system integrators, OEMs and industrial end users for use cases such as machine control, factory automation, outdoor/indoor kiosks, pool and spa terminals, fueling stations and other environments requiring front-side water/dust protection.

Technical specifications

• Model: R12IT3S-IPM2
• Brand: Winmate
• Display: 12.1 inches, 1024 x 768 (XGA), 500 nits, 1000:1 contrast, viewing angles 89/89/89/89, active area 245.76 x 184.32 mm
• Touch / Glass: Resistive touch (optional) or protection glass (optional)
• CPU: Intel® Core™ i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 4 GB default; optional 8/16/32 GB (1 x SO-DIMM, DDR4 3200 MHz)
• Storage: 128 GB SSD default; optional 256/512 GB/1TB/2TB/4TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (optional)
• Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2242 (SATA), 1 x M.2 2230 E-Key (Wi‑Fi)
• Ethernet: 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45)
• Serial: 1 x RS232/422/485 (default RS232), 1 x RS232
• USB: 2 x USB3.2 Gen2x1 (Type-A)
• Video: VGA; 1 x HDMI 2.0 (optional)
• Audio: 2 x speaker
• Indicators: LED power, LED storage; Brightness adjustment knob
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise / Windows 11 Pro / Linux Ubuntu 22.04 (optional; Ubuntu does not support Wake on Touch)
• Wireless: Optional (via M.2 Wi‑Fi module)
• Mechanical: 324 x 274 x 67 mm; Cut-out 302 x 234.3 mm; Weight 2.6 kg
• Mounting: Panel mount (default); VESA mount optional
• Enclosure: Metal housing; Cooling: Fanless
• Power: 1 x 12V DC input (2.5φ DC jack); Adapter 12V 120W
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws, mounting clips
• Controls: 1 x Power button, 1 x Reset button
• Environment: Operating humidity 10%–90% RH non-condensing; Operating temperature 0°C–50°C; Storage temperature -10°C–60°C
• IP rating: Front IP65
• Certifications: CE, FCC
