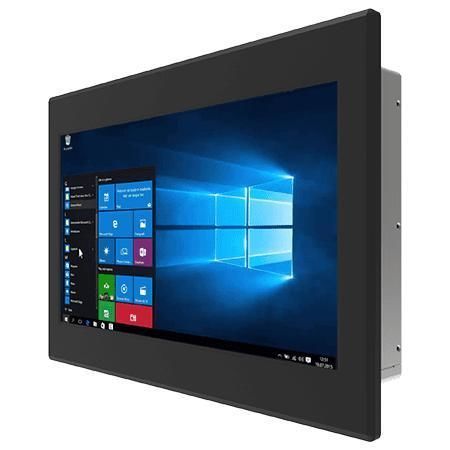

Resistive touch screen panel PC W15IT3S-IPA2

TFT LCD15.6"Intel® Core™ i5-1135G7

Overview
Winmate W15IT3S-IPA2 is a 15.6-inch Front IP65 Panel PC powered by Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz). Designed for machine control, factory automation, operator HMI and outdoor kiosks, it features a fanless thermal design, front IP65 bezel and multiple expansion options for storage, memory and connectivity.

Key features

• 15.6-inch TFT XGA display (1366 x 768), 400 nits
• Intel® Core™ i5-1135G7 2.4 GHz (turbo to 4.2 GHz)
• Fanless cooling and ultra-low power design
• Front IP65 bezel for water and dust protection
• 1 x SO-DIMM DDR4 3200 MHz (Max. 32 GB)
• Integrated dual 2.5G Ethernet (2 x Intel® Ethernet Controller)
• M.2 expansion: Key M for SSD (2242 SATA III / 2280 NVMe optional)

Certifications

• CE
• FCC

Display

• Size: 15.6 inches
• Resolution: 1366 x 768 (XGA)
• Brightness: 400 nits
• Contrast Ratio: 500:1
• Viewing Angles: 85/85/80/80
• Active Area: 344.232 x 195.536 mm
• Touch / Glass: Resistive touch (optional) or protection glass (optional)

System Specification

• Processor: Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 4 GB default; optional 8 / 16 / 32 GB (1 x SO-DIMM, DDR4 3200 MHz)
• Storage: 128 GB SSD default; optional 256 / 512 GB / 1 / 2 / 4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (optional)
• Ethernet: 2 x 2.5G LAN RJ45 (Intel® controllers)
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04 (optional)
• WLAN/BT: Optional via M.2 Wi‑Fi module

Mechanical

• Dimensions: 400 x 280 x 74.5 mm
• Cut out: 368.3 x 232 mm
• Weight: 3.9 kg
• Mounting: Panel mount (default); VESA mount (optional)
• Enclosure: Metal housing
• Cooling: Fanless design

Environment

• Operating humidity: 10%–90% RH, non‑condensing
• Operating temperature: 0 °C to 50 °C
• Storage temperature: -10 °C to 60 °C
• IP rating: Front IP65

IO Ports

• USB: 2 x USB 3.2 Gen2 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: 1 x HDMI 2.0 (optional); VGA available
• Audio: 2 x speakers
• Expansion: 1 x M.2 2280 M-Key (NVMe); 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators: Power and storage LEDs; brightness adjustment knob
• Power input: 12V DC, 2.5φ DC jack

Control

• 1 x Power button; 1 x Reset button

Accessory

• 100–240V AC to 12V DC adapter
• Power cord, VESA screws, mounting clips

Power

• Power rating: 12V DC
• Adapter: 12V 120W

Product details / additional highlights

• Front IP65 waterproof bezel with rear O‑ring sealing for reliable protection when panel mounted
• Flexible surface options: cover glass (no touch) or resistive touch
• HDMI and VGA signal interfaces for integration with embedded systems
• Suited for wet, dusty or outdoor kiosk environments when correctly installed

Technical specifications

• Model: W15IT3S-IPA2
• Commercial name: 15.6" Intel® Core™ i5-1135G7 Front IP65 Panel PC
• CPU: Intel® Core™ i5-1135G7 (2.4 GHz, turbo to 4.2 GHz)
• Display: 15.6" TFT XGA, 1366x768, 400 nits, 500:1
• Memory: DDR4 SO-DIMM (1 x SO-DIMM, up to 32 GB)
• Storage options: 128 GB SSD default; M.2 and SATA expansion; NVMe optional
• LAN: 2 x Intel® Ethernet (2 x 2.5G RJ45)
• Expansion: M.2 2280 M-Key (NVMe), M.2 2230 E-Key (Wi‑Fi)
• IO: 2 x USB 3.2 Gen2, serial ports, HDMI (optional), VGA, speakers
• Security: TPM 2.0
• Mechanical: 400 x 280 x 74.5 mm; cut out 368.3 x 232 mm; weight 3.9 kg
• Environment: Oper. 0°C–50°C; Storage -10°C–60°C; 10%–90% RH; Front IP65
• Certifications: CE, FCC
• Power: 12V DC input; adapter 12V 120W
