Resistive touch screen panel PC W22IT7T-IPA3

widescreentouch screen21.5"

Overview

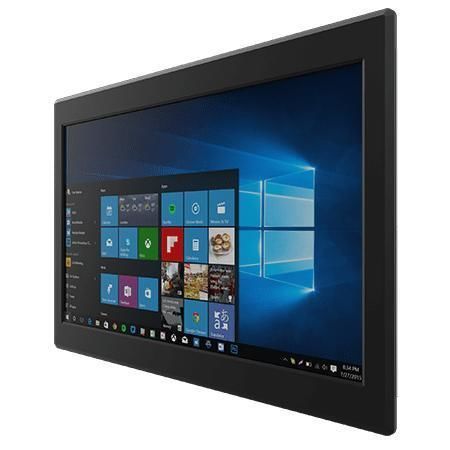

Winmate W22IT7T-IPA3 is a 21.5-inch Front IP65 Panel PC built for machine control, factory automation and operator HMI. It integrates Intel® Core™ Tiger Lake UP3 i5 processors, supports multiple display interfaces and a wide range of I/Os, and provides a front-side IP65 rating for water and dust resistance.

Key Features

• 21.5" 1920 x 1080 resolution display
• Intel® Core™ Tiger Lake UP3 i5-1135G7 (without vPro) or i5-1145G7E (with vPro)
• Multi display support: DP / HDMI / LVDS / eDP panel interface
• Multiple I/Os including serial ports and USB 3.2 Gen 1 ports
• 12V single voltage power input
• Front IP65 water and dust proof

Product Highlights
Waterproof Front IP65 Design: Front IP65 Series Panel PC is rated IP65 on the front bezel, designed for wet and dusty environments such as factory automation, outdoor kiosks, swimming pool and SPA kiosks.

Touch and Operation Options: Offers flexible surface options including resistive touch screen (optional) or protection glass without touch, enabling intuitive operations or cover-glass configurations where touch is not required.

Display & Dual Output: Supports HDMI and VGA signal interfaces for easy integration with embedded boards and systems, and supports multi-display configurations via DP/HDMI/eDP/LVDS as applicable.

Easy Installation: The front bezel incorporates a rear rubber O-ring for sealing the bezel to customer fixtures to prevent water/dust ingress; suitable for cabinet or rack installations.

Suitable for Outdoor Kiosk Applications: When properly embedded in an enclosure, the front IP65 rating and robust design make it suitable for outdoor kiosks exposed to water, humidity, sunlight and airborne particles.

Certifications

• CE
• FCC

Caractéristiques / spécifications techniques

• Model: W22IT7T-IPA3
• Brand: Winmate
• Display size: 21.5 inches
• Resolution: 1920 x 1080
• Panel brightness: 250 nits
• Contrast ratio: 3000:1
• View angles: 89 / 89 / 89 / 89
• Active area: 476.64 x 268.11 mm
• Touch / Glass: Resistive Touch Screen (Optional) or Protection Glass without touch (Optional)
• Processor: Intel® Core™ i5-1135G7 2.4 GHz (up to 4.2 GHz); i5-1145G7E option with vPro noted in product highlights
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD (default); optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" SSD/HDD (optional); 1 x M.2 2280 M-Key slot for NVMe SSD
• Ethernet: 2 x Intel® Ethernet Controllers (1 x Gigabit RJ45 + 1 x 2.5 Gigabit RJ45)
• Security: TPM 2.0
• Operating System (optional): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Linux Ubuntu 22.04 (note: does not support Wake on Touch)
• WLAN / Bluetooth: Supported as optional (M.2 2230 E-Key slot for Wi-Fi module)
• USB: 4 x USB 3.2 Gen2x1 (Type-A)
• Serial ports: 1 x RS232/422/485 (default RS232), 1 x RS232
• LAN: 1 x Gigabit LAN RJ45, 1 x 2.5 Gigabit LAN RJ45
• Video output: 1 x DP1.4 (default), 1 x HDMI 2.0 (optional)
• Audio: Mic in, Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi), 1 x PCIe 4.0 (x16) slot (x4 signal)
• Indicators: LED indicator for power; LED indicator for storage
• Brightness control: 1 x Brightness Adjustment Knob
• Power input: 1 x 12V DC, DIN4 pin connector
• Power adapter: 12V 120W (accessory)
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws
• Power rating: 12V DC
• Dimension: 534 x 349 x 81 mm
• Cut-out dimension: 506 x 302 mm
• Weight: 7.2 kg
• Mounting: Open frame (default); panel mount (optional); VESA mount (optional)
• Enclosure: Metal housing
• Cooling: Fanless design
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non‑condensing
• IP rating: Front IP65
