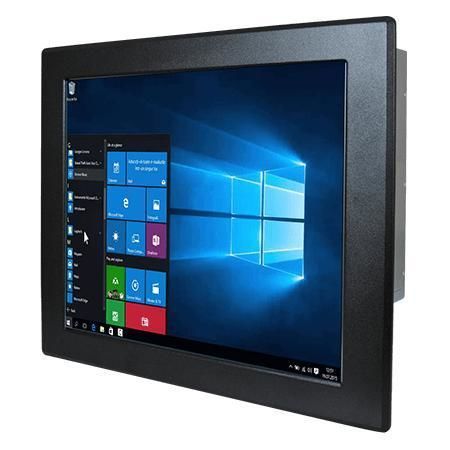

Resistive touch screen panel PC R19IP7T-IPM1

19"Intel® Pentium® N42001280 x 1024

Overview
The Winmate R19IP7T-IPM1 is a 19-inch front IP65 panel PC powered by Intel® Pentium® N4200 (Apollo Lake), engineered for machine control, factory automation and operator HMI. Front IP65 protection, flexible touchscreen or protection-glass options, dual-display outputs and multiple I/O make it suitable for industrial, kiosk and outdoor installations.

Key features

• Intel® Pentium® N4200 (1.10 GHz, burst up to 2.5 GHz)
• Flexible storage: M.2 2242 B-key + 2 x SATA III for 2.5" SSD/HDD; default 128GB SSD, optional 256/512GB/1TB
• Multiple I/O: 4 x USB3.2 Gen1 (Type-A), serial ports (RS232/422/485), 2 x Gigabit LAN
• Display outputs: 1 x DP1.2 (4096x2160@60Hz), optional HDMI1.4 (3840x2160@30Hz), optional VGA
• Front panel protection: IP65 (O-ring sealed bezel)

Display

• 19.0-inch, 1280 x 1024, brightness 250 nits, contrast 1000:1
• Viewing angles: 85/85/80/80; active area 376.32 x 301.06 mm
• Touch options: resistive touch (optional) or protection glass without touch (optional)

System configuration

• Memory: 2 x SO-DIMM (DDR3L), dual-channel, up to 16 GB
• Ethernet: 2 x Intel® Gigabit controllers
• Security: TPM 2.0 support
• OS: Windows 10 IoT Enterprise 64-bit (optional); Linux (Ubuntu options)
• Wireless: optional M.2 2230 E-key for Wi‑Fi/Bluetooth

Mechanical & mounting

• Dimensions: 474 x 384 x 78 mm; cut-out: 431 x 341 mm
• Weight: approx. 6.9 kg
• Mounting: panel mount (default); VESA mount optional
• Enclosure: metal housing, fanless design

Environment & certifications

• Operating temp: 0°C to 50°C; storage: -10°C to 60°C
• Operating humidity: 10%–90% RH, non-condensing
• Front IP rating: IP65
• Certifications: CE, FCC

I/O, indicators & expansion

• USB: 4 x USB3.2 Gen1 Type-A
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232 (optional configs)
• LAN: 2 x RJ45 Gigabit
• Audio: Mic-in, Line-out, 2 x speakers
• Expansion: 1 x M.2 2242 B-key (SATA SSD), 1 x M.2 2230 E-key, 1 x PCIe 2.0 x1 (optional)
• Indicators & controls: power LED, storage LED, brightness knob, power/reset buttons

Power & accessories

• Power input: 1 x 12V DC (Din4 pin)
• Typical adapter: 12V 84W (100~240V AC to DC)
• Accessories: power cord, VESA screws, mounting clips, drivers/manual (depending on configuration)

Model / technical specifications

• Model: R19IP7T-IPM1
• Brand: Winmate
• CPU: Intel® Pentium® N4200
• Display: 19", 1280x1024
• Memory: up to 16 GB SO-DIMM
• Storage: M.2 + 2 x SATA III for 2.5" drives
• LAN: 2 x Gigabit
• Front IP: IP65
• Dimensions / Weight: 474 x 384 x 78 mm / ~6.9 kg
• Certifications: CE, FCC
