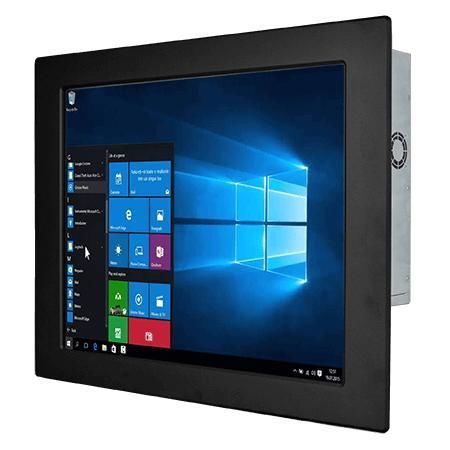

Resistive touch screen panel PC R19IF7T-IPA1

19"Intel® Core i3Intel® Core i5

Overview
The R19IF7T-IPA1 is a 19-inch front IP65 panel PC powered by Intel® 9th Gen Core™ i3/i5/i7 (Coffee Lake Refresh). Designed for machine control, factory automation and operator HMI in wet or dusty environments, it combines a waterproof front bezel, flexible touch/display options, extensive I/O and dual-display support for embedded industrial installations.

Key features

• 19" display, 1280 x 1024 resolution, 400 nits
• Intel® 9th Gen Core™ i3 / i5 / i7 processor options
• Flexible storage: 2.5" HDD bay, M.2 SSD; 2 x SATA III with RAID 0/1 support
• Multiple I/O: 4 x USB 3.2 Gen1 (Type-A), 2 x Gigabit LAN, serial ports, audio
• 12 V DC lockable power input; DP and HDMI video outputs (4K supported)
• Front IP65 protection suitable for outdoor kiosks and industrial panels

Product highlights / features
Front IP65 waterproof design: sealed front bezel for water and dust resistance while maintaining a narrow bezel for recessed installations.
Touch and surface options: optional resistive touchscreen or protection glass (no-touch) to match operator requirements.
Dual display output & signal interfaces: DP (default) and optional HDMI plus VGA signal compatibility for integration with embedded systems.
Easy installation and sealing: rear O-ring rubber seal on bezel for reliable panel mounting in cabinets or racks.

Certifications
CE, FCC

Technical specifications

• Display — Size: 19.0"; Resolution: 1280 x 1024; Brightness: 400 nits; Contrast: 1000:1; Viewing angles: 85/85/80/80; Active area: 376.32 x 301.06 mm; Touch/Glass: Resistive touch (optional) or protection glass (optional)
• Processor — Intel® Core™ i7-9700TE 1.8 GHz (up to 3.8 GHz) default; Intel® Core™ i5-9500TE and Intel® Core™ i3-9100TE optional
• Chipset — Intel® Q370
• Memory — 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per slot)
• Storage — Default 128 GB SSD; optional 256/512 GB / 1 TB / 2 TB; 2 x SATA III for 2.5" HDD/SSD (RAID 0/1 optional); 1 x M.2 2280/2242 M-Key (NVMe/SATA); 1 x M.2 2230 E-Key (Wi‑Fi)
• Ethernet — 2 x Intel® Gigabit Ethernet controllers
• Security — TPM 2.0
• OS — Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu 18.04 / 20.04 optional
• Video — 1 x DP 1.2 (default); 1 x HDMI 1.4 (optional); DP up to 4096 x 2304 @ 60 Hz; HDMI up to 4096 x 2304 @ 24 Hz
• USB & Serial — 4 x USB 3.2 Gen1 (Type-A); Serial: 1 x RS232/422/485 selectable (default RS232) + 1 x RS232
• Audio — Mic in, Line out, 2 x speakers
• Expansion — 1 x PCIe 3.0 x16 (optional); M.2 expansion as noted
• Power & Mechanical — Power input: 12 V DC Din4 pin (lockable); adapter example 12 V 120 W; Dimensions: 474 x 384 x 78 mm; Cut-out: 431 x 341 mm; Weight: ~6.9 kg; Panel mount standard; VESA optional
• Environment — Operating humidity 10%–90% RH non-condensing; Operating temperature 0°C to 50°C; Storage temperature -20°C to 60°C; Front IP rating: IP65
• Certifications — CE, FCC
