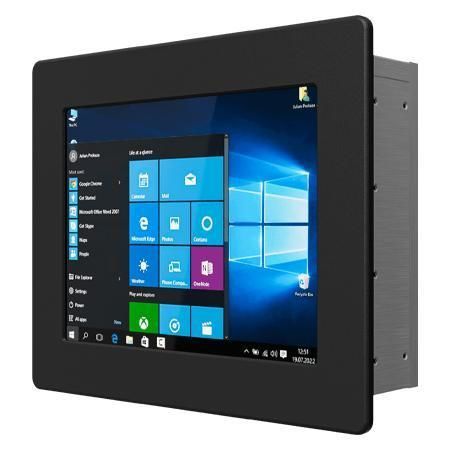

Resistive touch screen panel PC R10IAD3S-IPT2

10.4"Intel® Core i5-1235U1024 x 768

Overview
Winmate R10IAD3S-IPT2 is a 10.4-inch Front IP65 industrial Panel PC powered by Intel® Core™ i5-1235U, designed for machine control, factory automation and operator HMI. It targets rugged, embedded or mission-critical environments that require reliable hardware integration, stable field operation and long lifecycle availability.

Key Features

• 10.4” 1024 x 768 Resolution Front IP65 PC
• 12th Gen Intel® Core™ i5-1235U processor
• 1 x SODIMM, DDR5 4800MHz, support up to 32GB
• Integrated Dual 2.5 Gigabit Ethernet
• Multiple I/Os: 2 x USB 3.2 Gen2x1, 2 x Serial Ports
• Front IP65
• 12 V DC Power input

Waterproof Front IP65 Design
Front IP65 Series Panel PC is engineered for wet and dusty applications with robust water and dust resistance while maintaining a sleek, space-saving form factor. Suitable for deployment in environments such as factory automation and outdoor kiosks.

Intuitive Operations with the Touchscreen
Provides adaptable surface options including resistive touch screen or protection glass (no touch) to meet varied specification requirements for operator convenience in industrial settings.

HDMI, VGA Signal Interfaces
Includes VGA and optional HDMI interfaces to enable seamless integration with embedded boards and a wide range of industrial/commercial systems.

Easy Installation
Designed with a rubber O-ring seal on the rear of the front bezel to seal to the customer fixture and prevent ingress of water/dust; supports easy panel or cabinet/rack installation.

Suitable for Outdoor Kiosk Applications
When properly integrated into an enclosure, the Front IP65 Panel PC can withstand outdoor challenges including water, humidity, temperature extremes and sunlight, making it suitable for kiosks in parking lots, gas stations, pools and similar installations.

Specifications

• Model: R10IAD3S-IPT2
• Display Size: 10.4 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass Without Touch Function (Optional)
• Resolution: 1024 x 768
• Panel Brightness: 500.0 nits
• Contrast Ratio: 1000:1
• View Angles: 88, 88, 88, 88
• Active Area: 210.4 x 157.8 mm
• Processor: Intel® Core™ i5-1235U 3.3 GHz (up to 4.40 GHz)
• Memory: 8GB (Default); 16GB (Optional); 32GB (Optional); 1 x SODIMM DDR5 4800MHz, support up to 32GB
• Storage: 128GB SSD (Default); optional 256GB / 512GB / 1TB / 2TB / 4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional); 1 x M.2 2280 M-Key slot (for NVMe SSD)
• Ethernet Controller: 2 x Intel® Ethernet Controller (2.5 Giga LAN RJ45)
• Security: TPM 2.0
• Operating System: Windows 11 IoT Enterprise (64-bit) (Optional); Windows 11 Pro (64-bit) (Optional); Linux Ubuntu 22.04 (Optional, does not support Wake on Touch)
• WLAN / Bluetooth: Support (Optional)
• Mechanical Dimensions: 284 x 234 x 56 mm
• Cut out: 262 x 203 mm
• Weight: 2.4 kg
• Mounting: Panel mount (Default); VESA mount (Optional)
• Enclosure: Metal Housing
• Cooling System: Fanless Design
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP Rating: Front IP65
• Certification: CE, FCC
• USB Ports: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial Ports: 1 x RS232/422/485 (Default RS232) + 1 x RS232
• Video: 1 x HDMI 2.0 (Optional)
• Audio: 2 x Speaker
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD), 1 x M.2 2230 E-Key (Wi-Fi Module)
• Indicators: 1 x LED power indicator; 1 x LED storage indicator
• Brightness Control: 1 x Brightness Adjustment Knob
• Power Input: 1 x 12V DC, 2.5φ DC jack
• Power Rating / Adapter: 12V DC; 12V 120W adapter typical; Accessories include 100~240V AC to DC Adapter, Power Cord, VESA screws, Mounting clips
• Control: 1 x Power Button; 1 x Reset Button
