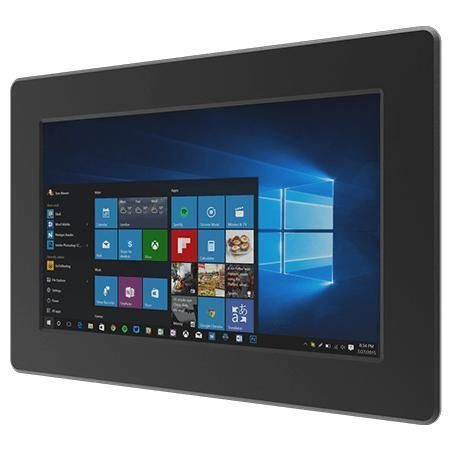

Resistive touch screen panel PC W18IT7T-IPA2

LCD18.5"Intel® Core™ i5-1135G7

Overview
Winmate W18IT7T-IPA2 is an 18.5-inch front IP65 industrial panel PC built for machine control, factory automation and operator HMI tasks. It integrates Intel® Core™ i5 (Tiger Lake) performance with a sealed front bezel for reliable operation in wet or dusty environments.

Key features

• Processor: Intel® Core™ Tiger Lake UP3 i5 series (i5-1135G7 / i5-1145G7E)
• 18.5" display, 1366 x 768 resolution, 450 nits
• Front protection: IP65 waterproof/dustproof bezel
• Multi-display support: DP / HDMI / LVDS / eDP
• Multiple I/O: serial ports, USB 3.2, Gigabit + 2.5G LAN
• 12V single-voltage DC input (Din4 pin)
• Fanless metal enclosure, TPM 2.0

Product highlights / Details
Front IP65 sealing: rubber O-ring on the front bezel prevents water and dust ingress when panel-mounted. Ideal for industrial kiosks and outdoor installations when installed correctly.
Touch and surface options: choose resistive touch or protection glass (no touch) to match operator needs and environmental requirements.
Video interfaces and integration: native DP1.4 (default) with optional HDMI 2.0; VGA/HDMI support eases connection to embedded systems and external displays.
Installation and mounting: designed for panel-mount with optional VESA mount; includes mounting clips and VESA screws as accessories.

Certifications
CE, FCC

Typical applications

• Machine control and factory automation
• Operator HMI and control panels
• Industrial and outdoor kiosks (parking, fuel stations, pool/SPA kiosks)
• OEM systems requiring sealed front-panel solutions

Technical specifications

• Display: 18.5 inches, 1366 x 768, 450 nits, 1000:1 contrast, viewing angles 85/85/80/80, active area 409.8 x 230.4 mm
• Touch / Glass: Resistive touch (optional) or protection glass without touch (optional)
• CPU: Intel® Core™ i5-1135G7 (2.4GHz, up to 4.2GHz); optional i5-1145G7E
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD default; optional 256/512 GB, 1/2/4 TB; 1 x SATA III for 2.5" drive (optional); 1 x M.2 2280 M-Key (NVMe)
• LAN: 1 x Gigabit RJ45 + 1 x 2.5G RJ45; 2 x Intel® Ethernet controllers
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• USB: 4 x USB 3.2 Gen2x1 (Type-A)
• Video: 1 x DP1.4 (default); 1 x HDMI 2.0 (optional)
• Audio: Mic in, Line out
• Expansion: 1 x M.2 2230 E-Key (Wi‑Fi), 1 x PCIe 4.0 x16 (x4 signal)
• Security: TPM 2.0
• Power: 1 x 12V DC (Din4 pin); adapter 12V 120W
• Dimensions / Cut-out: 520 x 340 x 70 mm / 462 x 285 mm; Weight: 5.3 kg
• Mounting: Panel mount (standard); VESA mount (optional)
• Enclosure: Metal, fanless design
• Environment: Operating 0°C–50°C, 10%–90% RH (non-condensing); Storage -10°C–60°C
• IP rating: Front IP65
• Accessories: 100~240V AC to 12V DC adapter, power cord, VESA screws, mounting clips
