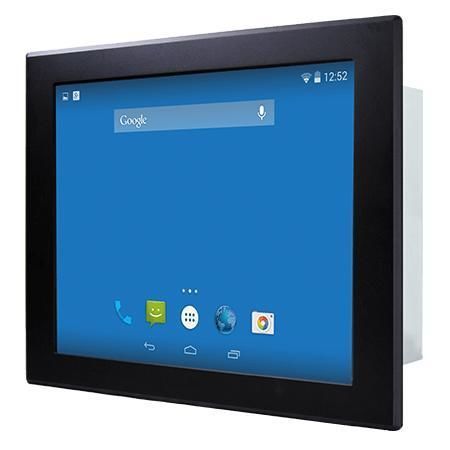

Resistive touch screen panel PC R19FA3S-IPM1

TFT LCD19"NXP i.MX6

Overview
The Winmate R19FA3S-IPM1 is a 19-inch front IP65 Panel PC powered by an NXP i.MX6 platform, engineered for machine control, factory automation and operator HMI. The fanless, low-power design and front IP65 protection make it suitable for wet and dusty industrial environments where long lifecycle availability is required.

Key Features

• 19" 1280 x 1024 TFT LCD with resistive touch (optional protective glass)
• NXP i.MX6 Dual Core 1.0 GHz (Quad Core optional)
• Front IP65 protection for water and dust resistance
• Onboard LPDDR3 1 GB (optional 2 GB)
• Onboard eMMC 16 GB (optional 32 GB)
• I/O: USB, RS-232/422/485, Micro SD, Mini USB, Micro HDMI (optional), LAN with PoE
• Fanless operation and ultra-low power consumption

Waterproof Front IP65 Design
The front IP65 rating protects against splashes and dust ingress while maintaining a compact narrow bezel. Ideal for factory automation, outdoor kiosks and other applications exposed to moisture or particles.

Intuitive Operation with Touchscreen
Flexible surface options include a resistive touch panel for operator input or a protection glass option when touch is not required, enabling integration into different HMI configurations.

Display Outputs and Integration
The unit supports common video interfaces (Micro HDMI optional and VGA support) for straightforward integration with embedded boards and industrial systems.

Easy Installation
A rear O-ring on the front bezel provides sealing between the panel and customer fixtures to prevent ingress. The product supports panel mount and VESA mounting for quick installation in cabinets or kiosks.

Suitable for Outdoor Kiosk Applications
When correctly enclosed and mounted, the front IP65 rating allows the panel PC to withstand outdoor conditions including water, humidity, sunlight and airborne particles, making it suitable for parking, fueling stations and poolside kiosks.

Certifications
CE, FCC

Technical specifications

• Model: R19FA3S-IPM1
• Processor: NXP i.MX6 Dual Core 1.0 GHz (Quad Core optional)
• Memory: 1 GB LPDDR3 (default), 2 GB optional
• Storage: Onboard eMMC 16 GB (default), 32 GB optional
• OS (optional): Linux Ubuntu 18.04, Android 6.0, Debian 7.0, Linux 4.1.15 QT 5.5
• WLAN/BT: Optional via mPCIe Wi‑Fi module
• Display Size: 19.0 inches; Resolution: 1280 x 1024; Brightness: 250 nits; Contrast: 1000:1; View angles: 85/85/80/80
• Touch/Glass: Resistive touch (optional) or protection glass (optional)
• Mechanical Dimensions: 474 x 384 x 71.4 mm; Cut out: 431 x 341 mm; Active area: 376.32 x 301.06 mm
• Weight: 6.9 kg
• Mounting: Panel mount; VESA Mount
• Enclosure: Metal housing; Cooling: Fanless
• Operating Humidity: 10% to 90% RH non-condensing
• Operating Temperature: 0°C to 50°C; Storage Temperature: -10°C to 60°C
• IP rating: Front IP65
• IO Ports: 1 x Console (Mini USB), 1 x USB OTG, 1 x USB2.0 Type-A, 1 x RS232/422/485 (default RS232), 1 x RJ45 (PoE PD, IEEE 802.3at), 1 x Micro HDMI (optional), 2 x Speakers, 1 x Micro SD, 1 x mPCIe slot, 1 x CANBUS D-sub9
• Power Input: 1 x 12V DC, 2-pin terminal block; Adapter: 12V 50W (accessory)
• Accessories: 100~240V AC to DC adapter, power cord, driver CD & manual, VESA screws, mounting clips
• PoE: PD following IEEE 802.3at (up to 25 W)
