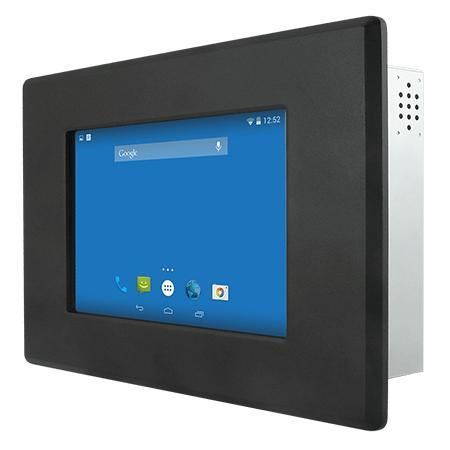

Resistive touch screen panel PC W07FA3S-IPT1

7"NXP i.MX61024 x 600

Overview
Winmate W07FA3S-IPT1 is a 7-inch front IP65 Panel PC based on the NXP i.MX6 platform, designed for machine control, factory automation and operator HMI applications. The unit features a fanless design, front-side IP65 protection and flexible touchscreen or protective-glass options to suit embedded and OEM installations.

Key Features

• 7" 1024 x 600 TFT LCD with resistive touch (option for protection glass)
• NXP i.MX6 Dual Core 1.0 GHz (Quad Core optional)
• Front IP65 ingress protection
• Onboard LPDDR3 1 GB (2 GB optional) and eMMC 16 GB (32 GB optional)
• Interfaces: USB 2.0, RS-232/422/485, Micro SD, Mini USB console, Micro HDMI (optional)
• PoE (PD, IEEE 802.3at) optional; fanless, ultra-low power operation

Product Highlights

• Waterproof front IP65 bezel suitable for wet and dusty environments such as factory floors and outdoor kiosks
• Selectable front surface: resistive touchscreen for glove use or protection glass when touch is not required
• Video interfaces (Micro HDMI / VGA support) for easy integration and secondary display options
• Rear O-ring sealing and panel-mount / VESA options for secure installation in enclosures or cabinets
• Optional WLAN/Bluetooth and expansion via mPCIe (half-size) for connectivity modules

Specifications

• Model: W07FA3S-IPT1
• Brand: Winmate
• Processor: NXP i.MX6 Dual Core 1.0 GHz (Quad Core optional)
• Memory: 1 GB LPDDR3 (default); 2 GB optional
• Storage: Onboard eMMC 16 GB (default); 32 GB optional
• Operating systems (optional): Linux Ubuntu 18.04; Android 6.0; Debian 7.0; Linux 4.1.15 + Qt 5.5
• WLAN / Bluetooth: optional (via mPCIe Wi‑Fi module)
• Display: 7.0" TFT LCD, 1024 x 600, brightness 320 nits, contrast approx. 500–1000:1, viewing angles 75/75/75/70
• Touch / Glass: Resistive touch (optional) or protection glass (no touch)
• Active area: 153.6 x 90 mm
• Mechanical dimensions: 218 x 164.6 x 55.3 mm; Cut out: 192 x 133 mm; Weight: approx. 1.5 kg
• Mounting: Panel mount; VESA mount
• Enclosure: Metal housing; Cooling: fanless
• Operating humidity: 10%–90% RH, non-condensing
• Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C
• IP rating: Front IP65
• Certifications: CE, FCC
• IO — USB: 1 x Mini USB (console), 1 x USB OTG, 1 x USB 2.0 Type-A
• IO — Serial: 1 x RS-232/422/485 (default RS-232)
• IO — LAN: 1 x RJ45 (PoE PD, IEEE 802.3at)
• IO — Video: 1 x Micro HDMI (optional)
• IO — Audio: 2 x speakers
• IO — SD: 1 x Micro SD card slot
• Expansion: 1 x mPCIe slot (half-size)
• CANBUS: 1 x CANBUS D-sub9
• Power input: 1 x 12 V DC, 2-pin terminal block; Adapter: 12 V 50 W (accessory)
• PoE (PD): IEEE 802.3at (25 W)
• Accessories: 100–240 V AC-to-DC adapter; power cord; VESA screws; mounting clips; driver CD & manual
