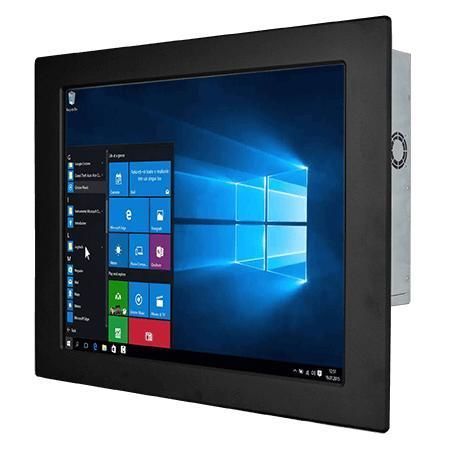

Resistive touch screen panel PC R19IAD7T-IPA1

touch screenLCD19"

Overview
Winmate R19IAD7T-IPA1 is a 19-inch front IP65 Panel PC designed for machine control, factory automation and operator HMI. It supports 12th/14th Gen Intel® Core™ processors (Alder Lake / Raptor Lake T-series) and provides front IP65 protection for wet and dusty installations while offering multiple I/O and expansion options for industrial integration.

Key features

• 19.0-inch 1280 x 1024 display, 400 nits, 1000:1 contrast
• Intel® Core™ i3/i5/i7/i9 T-series processor options (12th/14th Gen)
• 2 x SO-DIMM DDR5 4800MHz, up to 64GB (32GB per slot)
• Integrated dual 2.5 Gigabit Ethernet (Intel® controllers)
• Multi-display: DP1.4a (DP++), optional HDMI 2.0b
• Multiple I/O: 4 x USB 3.2 Gen2, serial ports (configurable RS232/422/485)
• Front IP65 protection, 12V DC power input

Front IP65 waterproof design
The front bezel is sealed with a rubber O-ring at the rear to prevent ingress of water and dust when installed in customer fixtures. The design is intended for wet and dusty industrial environments and suitable for outdoor kiosks, poolside or similar installations when mounted correctly.

Touchscreen and display options
Surface options include resistive touch (optional) or protection glass without touch. Display characteristics: 19.0 inches, 1280 x 1024 resolution, 400 nits brightness, 1000:1 contrast, viewing angles 85/85/80/80, active area 376.32 x 301.06 mm.

I/O and expandability
Standard industrial I/O and expansion include 4 x USB 3.2 Gen2 Type-A, serial ports (1 x RS232/422/485 configurable + 1 x RS232), dual 2.5 Giga LAN, DP1.4a and optional HDMI 2.0b, audio line-out and mic-in, plus M.2 slots for NVMe SSD and Wi‑Fi module.

Mechanical & installation
Compact panel-mount metal housing. Dimensions 474 x 384 x 87 mm; cut-out 431 x 341 mm; weight approx. 6.9 kg. Panel mount standard; optional VESA mount. Fan-cooled design.

Environmental performance
Operating humidity 10%–90% RH non-condensing. Operating temperature 0°C to 50°C. Storage temperature -10°C to 60°C. Front IP65 rating.

Certifications
CE, FCC.

Technical specifications

• Display: 19.0"; Resolution 1280 x 1024; Brightness 400 nits; Contrast 1000:1; Viewing angles 85/85/80/80; Active area 376.32 x 301.06 mm
• Touch / Glass: Resistive touch (optional); Protection glass without touch (optional)
• Processor options: Intel® Core™ i3-12100TE (default) / i5-12500TE / i7-12700TE / i9-12900TE and newer T-series options (i3-14100T, i5-14500T, i7-14700T, i9-14900T)
• Chipset: Intel® R680E
• Memory: 2 x non-ECC SO-DIMM, DDR5 4800MHz, up to 64GB (32GB per DIMM)
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; optional 2 x SATA III for 2.5" drives up to 2TB (RAID support)
• Ethernet: 2 x Intel® 2.5GbE (RJ45)
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise 64-bit (optional); Windows 11 Pro 64-bit (optional); Linux Ubuntu 22.04 (optional, Wake on Touch not supported)
• WLAN / Bluetooth: Optional (M.2 2230 E-Key)
• USB: 4 x USB 3.2 Gen2x1 (10 Gbps, Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Video: 1 x DP1.4a (DP++), up to 4096 x 2160@60Hz; 1 x HDMI 2.0b optional, up to 4096 x 2160@60Hz
• Audio: Mic in, Line out
• Expansion: 1 x M.2 2280 M-Key (NVMe SSD); 1 x M.2 2230 E-Key (Wi‑Fi)
• Power input: 1 x 12V DC Din4 pin connector; Adapter 12V 220W (depending on configuration)
• Buttons: 1 x Power, 1 x Reset
• Accessories: 100~240V AC→DC adapter; power cord; VESA screws; mounting clips
• Mechanical: 474 x 384 x 87 mm; Cut-out 431 x 341 mm; Weight 6.9 kg; Metal housing; Fan cooling
• Environmental: Operating humidity 10%–90% RH non-condensing; Operating temp 0°C–50°C; Storage temp -10°C–60°C; Front IP65
• Certifications: CE, FCC
