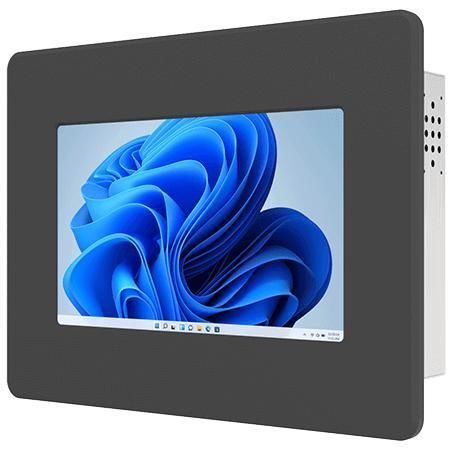

Resistive touch screen panel PC W07IAN3S-IPT1

TFT LCD7"Intel® Processor N150

Overview
Winmate W07IAN3S-IPT1 is a 7" front IP65 Panel PC for machine control, factory automation and operator HMI. It integrates Intel® Twin Lake N100 (default) or N150 (option) processors with integrated UHD graphics, a SO‑DIMM DDR5 slot and versatile I/O for embedded industrial applications.

Key Features

• 7" SVGA TFT LCD (1024 x 600), 320 nits
• Intel® Twin Lake N100 (default) / N150 (optional)
• 1 x SO‑DIMM DDR5‑4800, up to 16 GB
• 2 x Intel® 2.5 Gigabit Ethernet
• I/O: 1 x HDMI (optional), 1 x USB 3.2 Gen2 Type‑C (DP‑Alt), 2 x USB 3.2 Gen1 Type‑A, 4 x USB 2.0, 4 x COM
• Front IP65 protection; panel mount (default) and optional VESA mount
• Fanless metal housing, TPM 2.0, multiple storage options

Applications
Designed for OEMs, system integrators and embedded projects that require a compact, front‑IP65 HMI: machine control panels, production line operators, kiosks and monitoring stations in industrial environments.

Technical specifications

• Display: 7.0 inches; Resolution: 1024 x 600; Brightness: 320 nits; Contrast: 1000:1; Active area: 153.6 x 90 mm
• Touch/Glass: Resistive touch (optional); protection glass without touch (optional)
• Processor: Intel® N100 6M cache up to 3.40 GHz (default); Intel® N150 6M cache up to 3.60 GHz (optional)
• Memory: 4 GB (default); options 8 GB / 16 GB — 1 x SO‑DIMM DDR5‑4800, max 16 GB
• Storage: 128 GB SSD (default); optional 256 / 512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (when NVMe not present)
• Ethernet: 2 x Intel® 2.5 Gigabit Ethernet (RJ45)
• Video: 1 x HDMI 2.0b (optional); USB‑C supports DP Alt mode
• USB: 2 x USB 3.2 Gen1 Type‑A; 1 x USB 3.2 Gen2 Type‑C; 4 x USB 2.0
• Serial/COM: 1 x RS232/422/485 (default RS232) + 1 x RS232
• Audio: 2 x speaker
• Expansion: 1 x M.2 2230 E‑Key slot for Wi‑Fi module
• Indicators: LED power; LED storage
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise (64‑bit); Windows 11 Pro (64‑bit); Linux Ubuntu 24.04 (no Wake on Touch)
• Power: 1 x 12V DC, 2.5φ DC jack; adapter 12V 50W
• Buttons: 1 x Power; 1 x Reset
• Mechanical: Dimensions 218 x 164.6 x 55.3 mm; Cut out 192 x 133 mm; Weight 1.5 kg
• Mounting: Panel mount (default); VESA mount (optional)
• Enclosure/Cooling: Metal housing; fanless design
• Environment: Operating humidity 10%–90% RH non‑condensing; Operating temp 0°C–50°C; Storage temp -10°C–60°C
• Certification: CE, FCC
• Accessories: 100–240V AC to DC adapter; power cord; VESA screws; mounting clips
