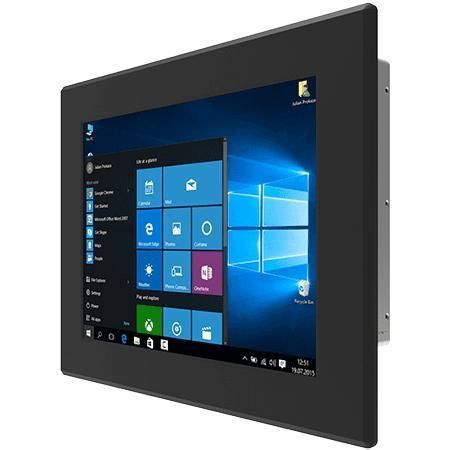

Resistive touch screen panel PC R15IAD3S-IPC3

15"Intel® Core i5-1235U1024 x 768

Overview
Winmate R15IAD3S-IPC3 is a 15.0-inch Front IP65 Panel PC powered by 12th Gen Intel® Core™ i5-1235U, intended for machine control, factory automation and operator HMI. It features front IP65 protection, fanless metal housing and multiple I/O for industrial integration.

Key features

• 15.0" 1024 x 768 Front IP65 display, 300 nits
• Intel® Core™ i5-1235U processor (up to 4.40 GHz)
• 1 x SODIMM DDR5 4800MHz, up to 32GB
• Integrated dual 2.5 Gigabit Ethernet (2 x RJ45)
• Multiple I/Os: 2 x USB 3.2 Gen2x1 (Type-A), serial ports, HDMI (optional)
• 12 V DC input, fanless design

Product highlights

• Front IP65 water and dust protection with rubber O-ring bezel sealing
• Touch options: resistive touch (optional) or protection glass without touch
• VGA and optional HDMI for easy integration with embedded systems
• Panel mount (default) or optional VESA mount; suitable for outdoor kiosks when installed correctly

Display
Size: 15.0 inches
Resolution: 1024 x 768
Panel Brightness: 300 nits
Contrast Ratio: 2000:1
View Angles: 88/88/88/88
Active Area: 304.1 x 228.1 mm
Touch / Glass: Resistive touch (optional) or protection glass (optional)

System specification
Processor: Intel® Core™ i5-1235U (3.3 GHz, up to 4.40 GHz)
Memory: 8GB default; optional 16GB/32GB; 1 x SODIMM DDR5 4800MHz, up to 32GB
Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB/4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional); 1 x M.2 2280 M-Key (NVMe)
Ethernet Controller: 2 x Intel® Ethernet Controller
Security: TPM 2.0
OS: Windows 11 IoT Enterprise (64-bit) / Windows 11 Pro 64-bit / Ubuntu 22.04 (optional)
WLAN / Bluetooth: optional (M.2 2230 E-Key)

Mechanical
Dimensions: 400 x 320 x 69 mm
Cut out: 359.6 x 274.1 mm
Weight: 5.1 kg
Mounting: Panel mount (default); VESA mount (optional)
Enclosure: Metal housing
Cooling: Fanless design

Environment
Operating Humidity: 10% to 90% RH, non-condensing
Operating Temperature: 0°C to 50°C
Storage Temperature: -10°C to 60°C
IP rating: Front IP65

Certification
CE, FCC

IO Ports

• USB: 2 x USB 3.2 Gen2x1 (Type-A)
• Serial: 1 x RS232/422/485 (default RS232) + 1 x RS232
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: 1 x HDMI 2.0 (optional)
• Audio: 2 x speaker
• Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 2230 E-Key (Wi‑Fi)
• Indicators: power and storage LEDs; 1 x brightness adjustment knob
• Power Input: 1 x 12V DC, 2.5φ DC jack

Control / Buttons
1 x Power button; 1 x Reset button

Accessories

• 100~240V AC to DC adapter (12V 120W)
• Power cord
• VESA screws (if applicable)
• Mounting clips

Technical specifications

• Model: R15IAD3S-IPC3
• Brand: Winmate
• Display: 15.0" 1024x768, 300 nits
• CPU: Intel® Core™ i5-1235U (up to 4.40 GHz)
• Memory: DDR5 SODIMM, up to 32GB
• Storage: 128GB SSD default; M.2 NVMe and 2.5" SATA support
• Network: Dual 2.5GbE
• I/O: 2 x USB3.2 Gen2, serial ports, optional HDMI
• Security: TPM 2.0
• Power: 12V DC input; adapter 12V 120W
• Dimensions / Weight: 400 x 320 x 69 mm / 5.1 kg
• Front protection: IP65
• Certifications: CE, FCC
