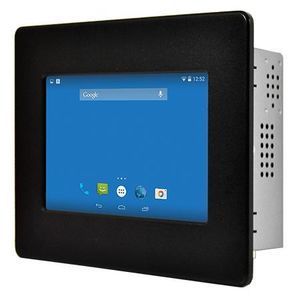

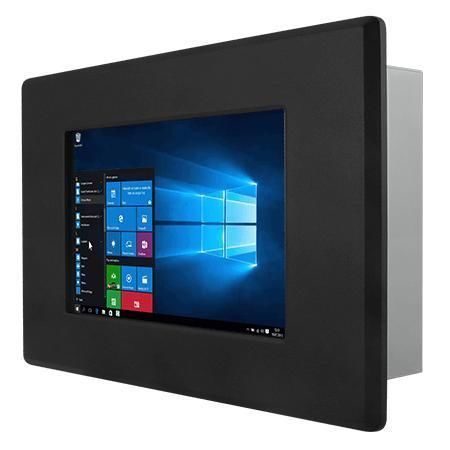

Resistive touch screen panel PC W07IE3S-IPT1

TFT LCD7"Intel® Celeron®

AI Summary
Winmate W07IE3S-IPT1 is a 7-inch Intel® Celeron® N6211 Front IP65 Panel PC designed for machine control, factory automation, and operator HMI. The product is suited for industrial buyers, OEMs, and system integrators requiring rugged, embedded, mission-critical hardware with long lifecycle availability. Key highlights include a 7” TFT SVGA LCD, Intel® Celeron® Elkhart Lake N6211 processor, 1 x SO-DIMM (max 16GB DDR4), 2 x Gigabit Ethernet, support for 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen2x1 and 4 x USB 2.0.

Key features

• 7” TFT SVGA LCD
• Intel® Celeron® Elkhart Lake N6211 Processor
• 1 x SO-DIMM, max. 16GB DDR4
• 2 x Gigabit Ethernet (2 x 2.5 Giga LAN RJ45)
• Supports 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen2x1, 4 x USB 2.0

Waterproof Front IP65 Design
Front IP65 Series Panel PC built for wet and dusty applications; rated IP65 front side to resist water and dust while keeping a compact narrow bezel design suitable for factory automation, outdoor kiosks, swimming pool and SPA kiosks, and similar environments.

Intuitive Operations with the Touchscreen
Offers flexible surface options: resistive touch screen (optional) or protection glass without touch function when touch is not required, enabling operator-friendly interaction in industrial settings.

HDMI, VGA Signal Interfaces
Includes VGA and optional HDMI interfaces for easy integration with embedded boards and systems; supports common industrial and commercial display connections.

Easy Installation
Unique rubber O-ring on the rear of the front bezel provides sealing between the front bezel and customer fixture to prevent ingress of water and dust. Designed for easy installation inside cabinets or racks.

Suitable for Outdoor Kiosk Applications
When embedded properly in an enclosure, the Front IP65 Series Panel PC withstands outdoor rigors (water, humidity, cold, heat, sunlight, airborne particles) and is suitable for kiosks in parking, gas stations, swimming pools, and other outdoor locations.

Certifications
CE, FCC

Caractéristiques / Spécifications techniques

• Model: W07IE3S-IPT1
• Display — Size: 7.0 inches; Resolution: 1024 x 600; Panel Brightness: 320.0 nits; Contrast Ratio: 1000:1; View Angles: 75,75,75,70; Active Area: 153.6 x 90 mm; Touch / Glass: Resistive Touch Screen (Optional) or Protection Glass Without Touch (Optional)
• Processor — Intel® Celeron® N6211 (up to 3.0 GHz)
• Memory — 4 GB (Default); options: 8 GB, 16 GB; 1 x SO-DIMM; max 16 GB DDR4
• Storage — 128 GB SSD (Default); optional 256 GB, 512 GB, 1 TB, 2 TB; 1 x SATA III for 2.5" SSD/HDD (Optional); 1 x M.2 2242 B-Key slot (for SATA III SSD)
• Ethernet controller — 2 x Intel® Ethernet Controller (2 x 2.5 Giga LAN RJ45)
• Security — TPM 2.0
• Operating System — Windows 11 IoT Enterprise (64-bit) (Optional); Windows 11 Pro 64-bit (Optional); Windows 10 IoT Enterprise (64-bit) (Optional); Linux Ubuntu 22.04 (Optional)
• WLAN / BT — Support optional; 1 x M.2 2230 E-Key slot (for Wi‑Fi module)
• USB Ports — 2 x USB 3.2 Gen2x1 (Type-A); 4 x USB 2.0
• Serial Port — 1 x RS232/422/485 (Default RS232); 1 x RS232
• Video — 1 x HDMI 2.0 (Optional); VGA interface available
• Audio — 2 x Speaker
• Indicators — 1 x LED indicator for power; 1 x LED indicator for storage
• Power Input — 1 x 12 V DC, 2.5φ DC jack; Power Adapter — 12 V 50 W (included as accessory option); 100~240 V AC to DC Adapter
• Buttons — 1 x Power Button; 1 x Reset Button
• Mechanical — Dimension: 190 x 131 x 55.2 mm; Cut out: 172 x 117 mm; Weight: 1.3 kg; Mounting: Panel mount (Default) / VESA mount (Optional); Enclosure: Metal housing; Cooling system: Fanless design
• Environment — Operating Humidity: 10% to 90% RH, non-condensing; Operating Temperature: 0°C to 50°C; Storage Temperature: -10°C to 60°C; IP rating: Front IP65
• Accessories — Power cord; VESA screws; Mounting clips
